4 Exploring data

4.1 Introduction

This script explores the relationships among ecological variables in our dataset. We use LiDAR-derived total height (Chapter 7), commercial height, and diameter at breast height (DBH) from the Commercial Forest Inventories (Chapter 3), as well as DBH from the Permanent Plots (Chapter 1).

4.2 Setup

Code

library(dplyr)
library(ggplot2)

4.3 Exploring Lidar derived height relationships

4.3.1 Load data

Code

if100_lidar <- read.csv("output/tree_height/all_tables.csv")

if100_lidar <- if100_lidar[!is.na(if100_lidar$z_lidar),]

4.3.2 Exploring data

Code

ordem_especies <- names(
  sort(
    tapply(if100_lidar$z_lidar,
           if100_lidar$nome_florabr,
           max),
    decreasing = TRUE
  ))


if100_lidar$nome_florabr <- factor(if100_lidar$nome_florabr,
                                   levels = rev(ordem_especies))

ggplot(data = if100_lidar,
   aes(x = nome_florabr,
       y = z_lidar)) +
  stat_summary(fun = max,
               geom = "col",
               fill = "steelblue") +
  scale_y_continuous(breaks = seq(0,
                                  max(if100_lidar$z_lidar),
                                  by = 10)) +
  coord_flip() +
  theme_minimal() +
  labs(
    x = "Species",
    y = "Maximum Lidar derived height (m)",

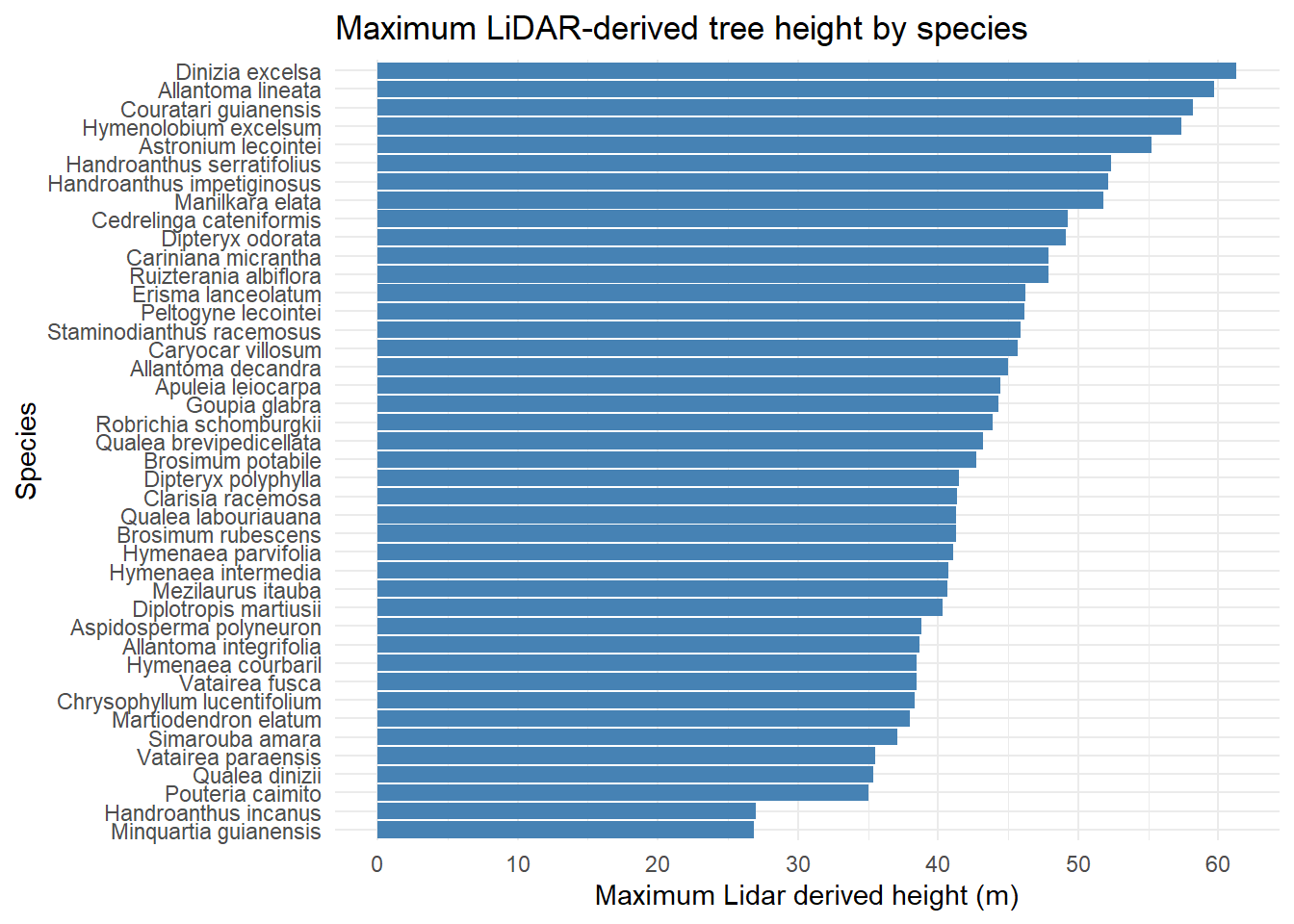

    title = "Maximum LiDAR-derived tree height by species")

Code

min_10_obs <- if100_lidar %>%
  group_by(nome_florabr) %>%
  filter(n() > 10) %>%
  ungroup()


ggplot(min_10_obs,
       aes(x = DAP,
           y = z_lidar)) +
  geom_point(alpha = 0.6,
             color = "steelblue") +
  geom_smooth(method = "lm",
              se = FALSE,
              color = "black") +
  facet_wrap(~ nome_florabr,
             scales = "free") +
  theme_minimal() +
  labs(
    x = "DBH (cm)",
    y = "Lidar derived Height (m)",

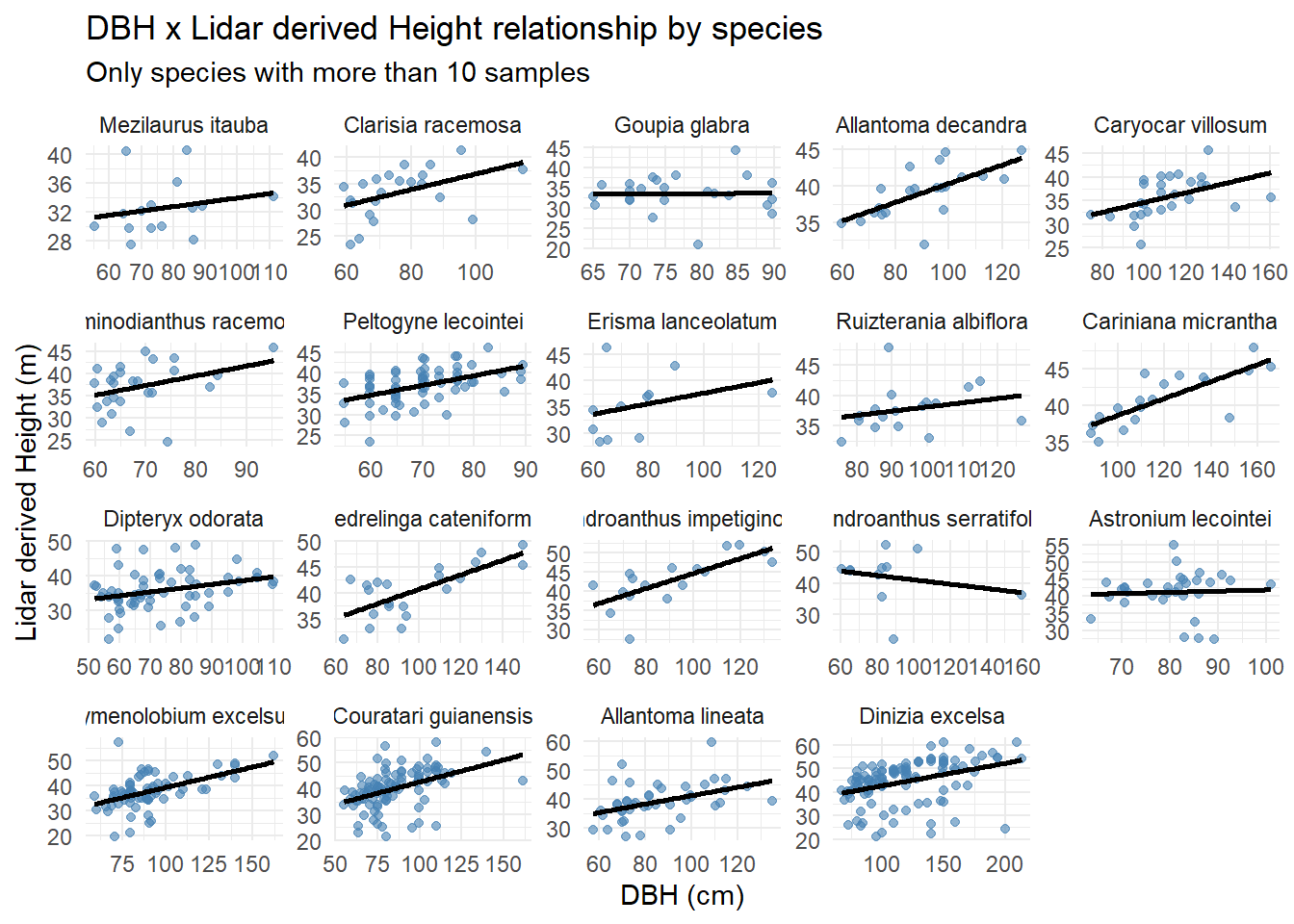

    title = "DBH x Lidar derived Height relationship by species",
    subtitle = "Only species with more than 10 samples")

`geom_smooth()` using formula = 'y ~ x'

4.4 Exploring DBH relationships

4.4.1 Load data

Code

if100_romaneio <- read.csv("output/if100/if100_romaneio_madeflona.csv")
pps <- read.csv("output/pps/tabelao_pps.csv")

4.4.2 Exploring data

Preparing commercial forest inventories (IF100) data.

Code

max_dap_if100 <- tapply(if100_romaneio$DAP,
                  if100_romaneio$nome_florabr,
                  max)

ordem_especies_if100 <- names(sort(max_dap_if100, decreasing = TRUE))

top20_species_if100 <- ordem_especies_if100[1:30]

highest_dbh_if100 <- if100_romaneio[if100_romaneio$nome_florabr %in% top20_species_if100, ]

highest_dbh_if100$nome_florabr <- factor(highest_dbh_if100$nome_florabr,
                                   levels = rev(top20_species_if100))

if100_romaneio$nome_florabr <- factor(if100_romaneio$nome_florabr,
                                      levels = rev(ordem_especies_if100))

Preparing Permanent Plots data.

Code

max_dap_pps <- tapply(pps$diametrocm,
                  pps$nome_florabr,
                  max)

ordem_especies_pps <- names(sort(max_dap_pps, decreasing = TRUE))

top20_species_pps <- ordem_especies_pps[1:30]

highest_dbh_pps <- pps[pps$nome_florabr %in% top20_species_pps, ]

highest_dbh_pps$nome_florabr <- factor(highest_dbh_pps$nome_florabr,
                                   levels = rev(top20_species_pps))

pps$nome_florabr <- factor(pps$nome_florabr,
                                      levels = rev(ordem_especies_pps))

Visualizing data.

Code

ggplot(highest_dbh_if100, aes(x = nome_florabr,
                        y = DAP)) +
  stat_summary(fun = max,
               geom = "col",
               fill = "steelblue") +
  scale_y_continuous(
    breaks = seq(0,
                 max(highest_dbh_if100$DAP),
                 by = 50)
  ) +
  coord_flip() +
  theme_minimal() +
  labs(
    x = "Species",
    y = "DBH (cm)",

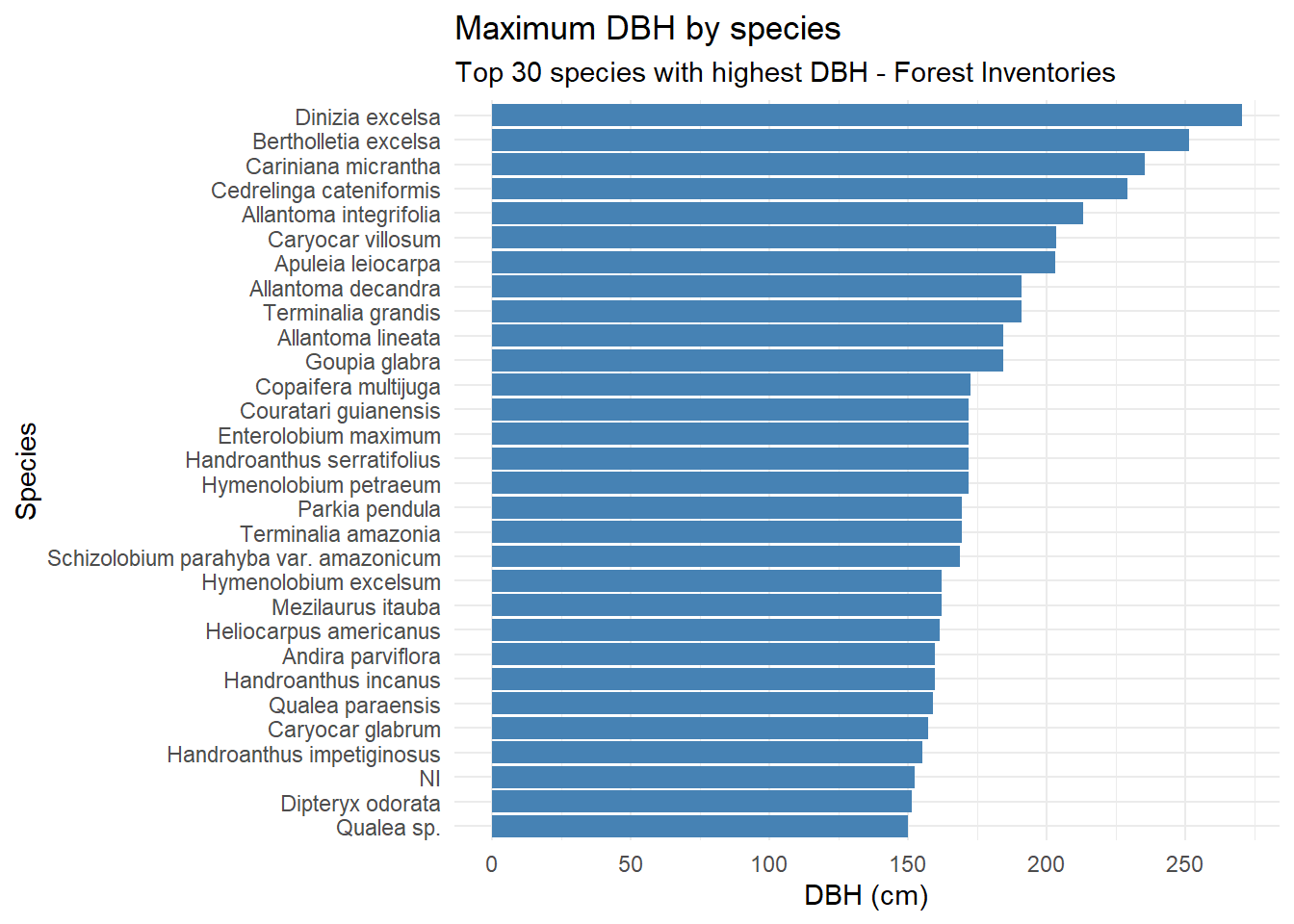

    title = "Maximum DBH by species",
    subtitle = "Top 30 species with highest DBH - Forest Inventories"
  )

Code

ggplot(highest_dbh_pps, aes(x = nome_florabr,
                        y = diametrocm)) +
  stat_summary(fun = max,
               geom = "col",
               fill = "steelblue") +
  scale_y_continuous(
    breaks = seq(0,
                 max(highest_dbh_pps$diametrocm),
                 by = 50)
  ) +
  coord_flip() +
  theme_minimal() +
  labs(
    x = "Species",
    y = "DBH (cm)",

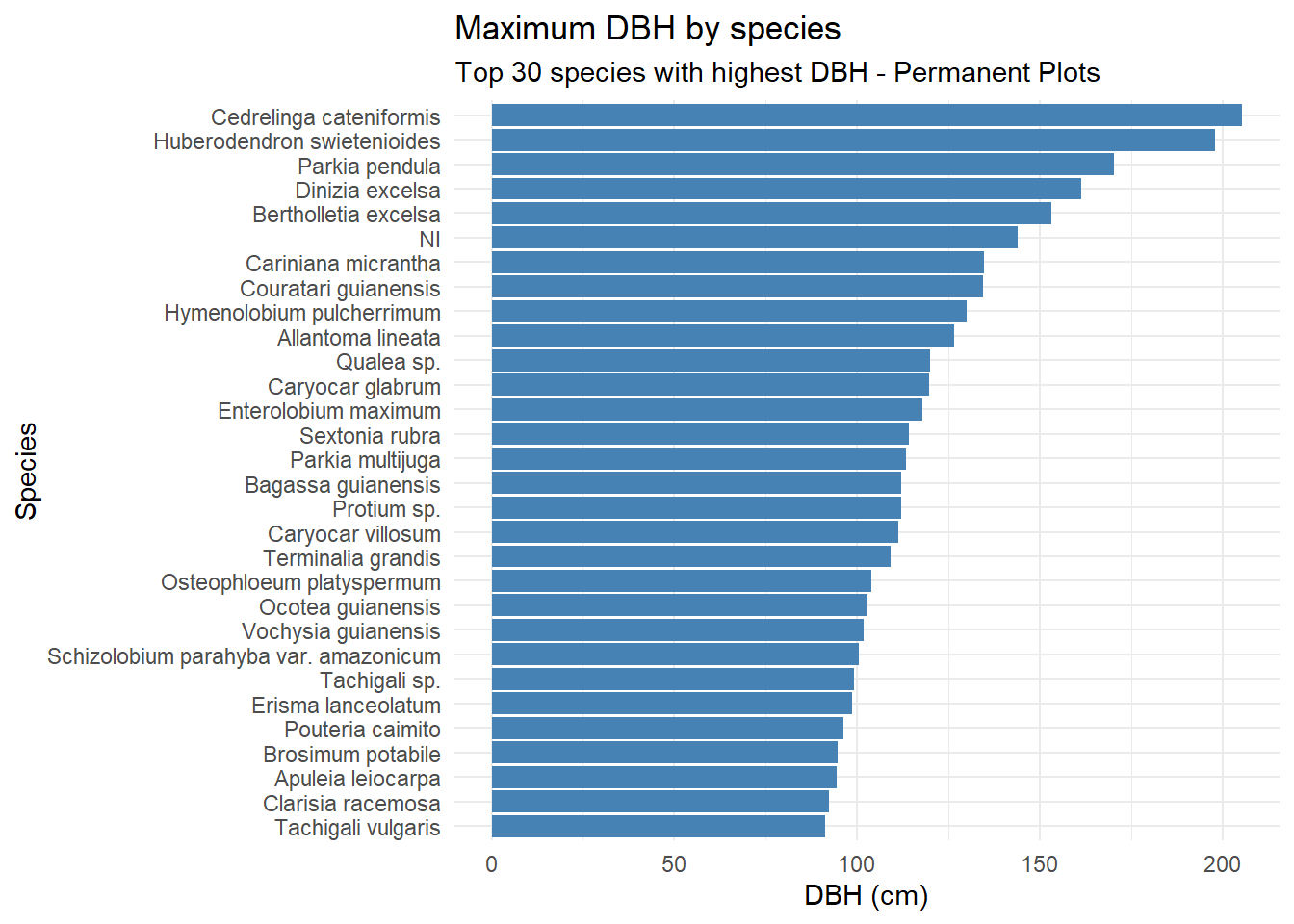

    title = "Maximum DBH by species",
    subtitle = "Top 30 species with highest DBH - Permanent Plots"
  )

Code

ggplot(highest_dbh_if100,
       aes(x = nome_florabr,
           y = DAP)) +
  geom_boxplot(fill = "steelblue",
               color = "black") +
  coord_flip() +
  scale_y_continuous(
    breaks = seq(0,
                 max(highest_dbh_if100$DAP),
                 by = 50)
  ) +
  theme_minimal() +
  labs(
    x = "Species",
    y = "DBH (cm)",
    title = "DBH distribution by species",
    subtitle = "Top 30 species with highest DBH - Forest Inventories"
  )

Code

ggplot(highest_dbh_pps, aes(x = nome_florabr,
                            y = diametrocm)) +
  geom_boxplot(fill = "steelblue",
               color = "black") +
  coord_flip() +
  scale_y_continuous(
    breaks = seq(0,
                 max(highest_dbh_pps$diametrocm),
                 by = 50)
  ) +
  theme_minimal() +

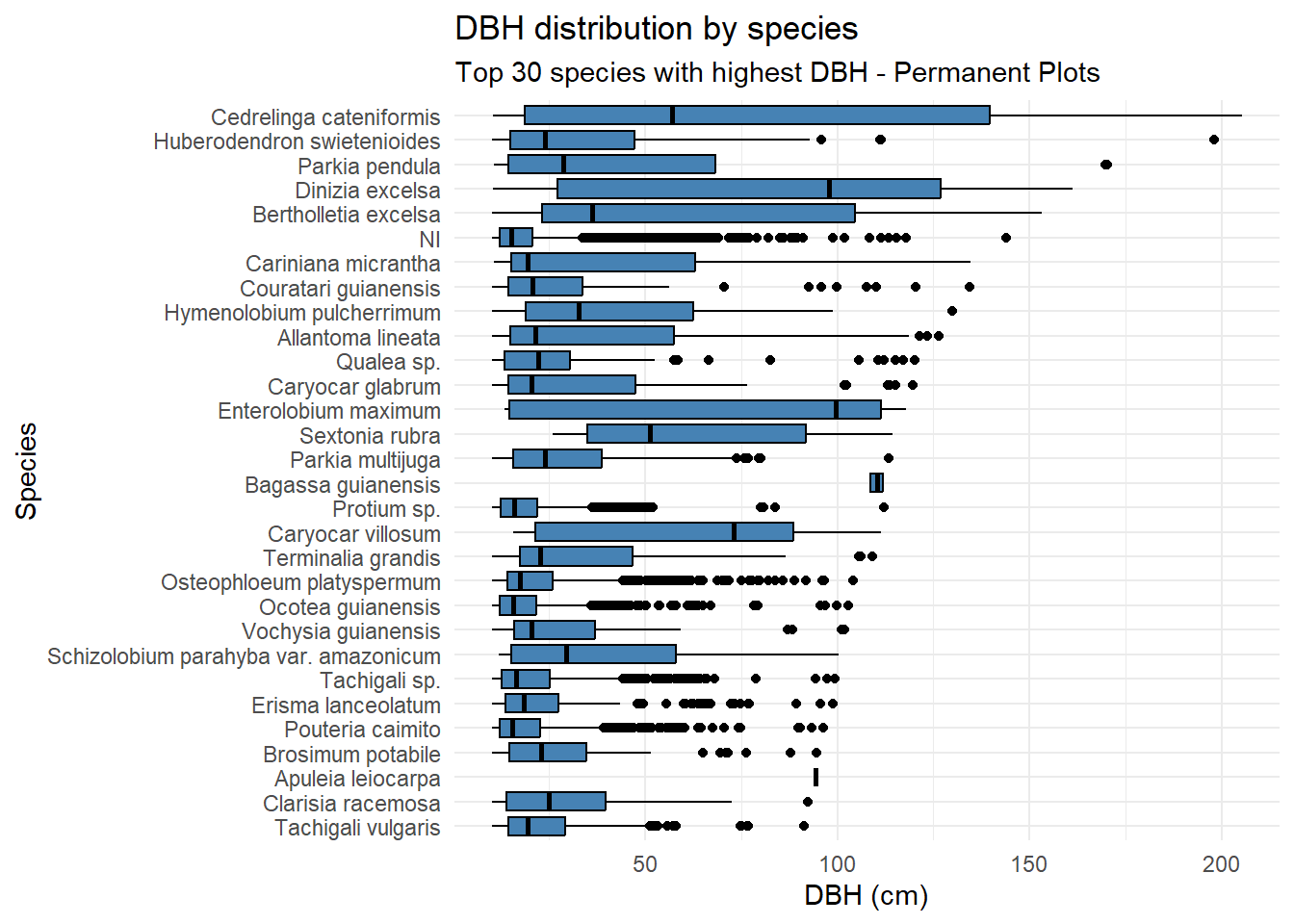

  labs(
    x = "Species",
    y = "DBH (cm)",
    title = "DBH distribution by species",
    subtitle = "Top 30 species with highest DBH - Permanent Plots"
  )

Important

Dinizia excelsa shows the greatest total height and DBH in the IF100 dataset, but ranks only fourth in DBH within the Permanent Plots. Bertholletia excelsa is a protected species in Brazil and therefore cannot be harvested; as a result, its height could not be estimated using the LiDAR-based methodology.

4.4.3 DBH x Commercial height relationships

Code

ggplot(if100_romaneio, aes(x = DAP,
                           y = Altura,
                           color = nome_florabr)) +
  geom_point(alpha = 0.6,
             size = 1.5) +
  geom_smooth(
    method = "lm",
    se = TRUE,
    color = "black",
    linewidth = 1
  ) +
  theme_minimal() +
  labs(
    x = "DBH (cm)",
    y = "Commercial Height (m)",

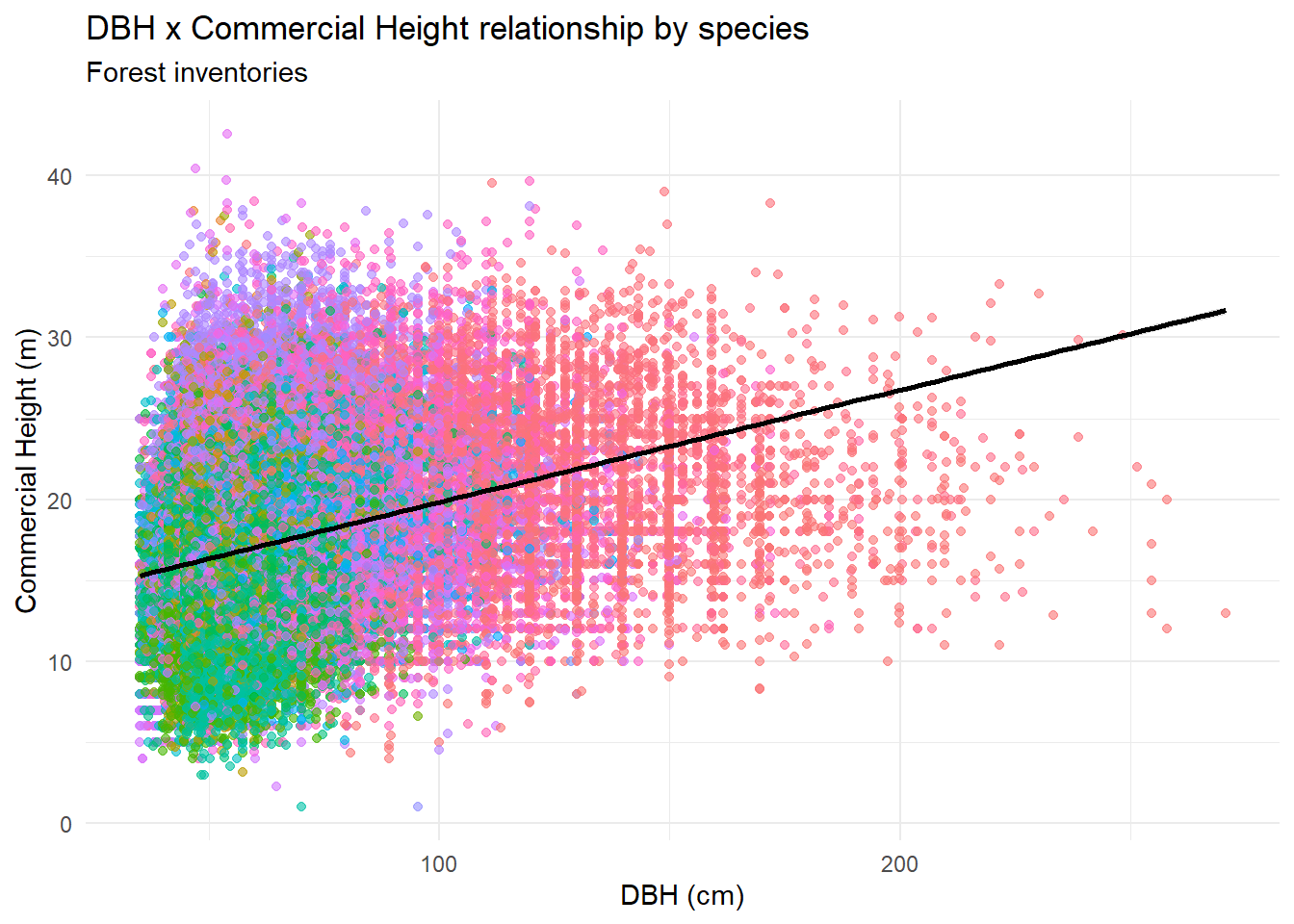

    title = "DBH x Commercial Height relationship by species",
    subtitle = "Forest inventories"
  ) +
  guides(color = "none")

`geom_smooth()` using formula = 'y ~ x'

4.4.4 DBH x Commercial height relationships by APU

Code

ggplot(if100_romaneio, aes(x = DAP,
                           y = Altura,
                           color = nome_florabr)) +
  geom_point(alpha = 0.6,
             size = 1.5) +
  geom_smooth(
    method = "lm",
    se = TRUE,
    color = "black",
    linewidth = 1
  ) +
  facet_wrap(~ codigo) +
  theme_minimal() +
  labs(
    x = "DBH (cm)",
    y = "Commercial Height (m)",

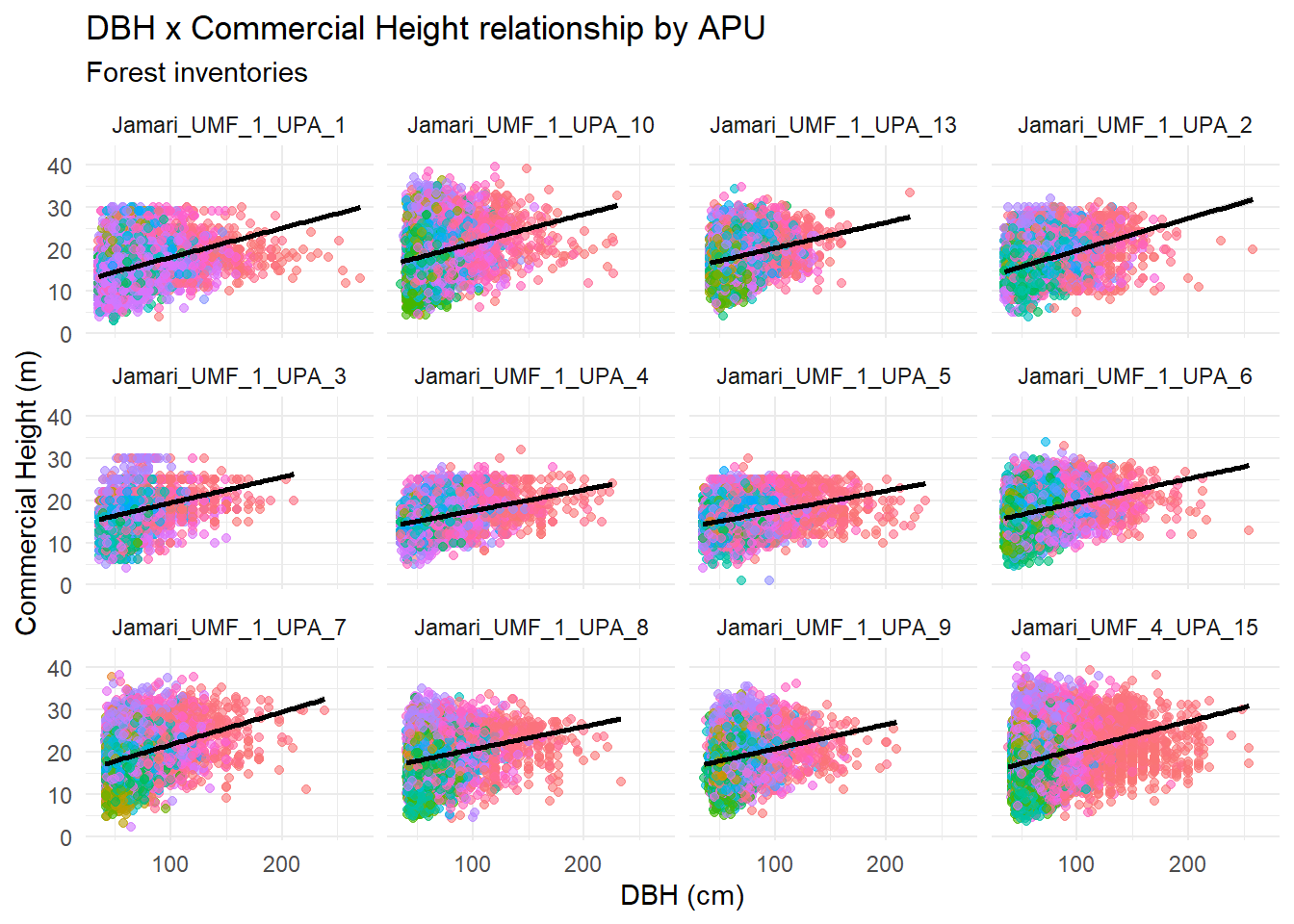

    title = "DBH x Commercial Height relationship by APU",
    subtitle = "Forest inventories"
  ) +
  guides(color = "none")

`geom_smooth()` using formula = 'y ~ x'

4.4.5 Permanent plots

Let’s see permanent plots structures. We will use only the first measurement (before exploitation).

Code

pps$cod_parcela <- paste(pps$cod_upa,
                             pps$p23_cdparcela,
                             sep = "_")


mean_dbh_plot_first_year <- pps %>%
                              group_by(cod_parcela) %>%
                              filter(p23_cdmedicao == min(p23_cdmedicao)) %>%
                              mutate(cod_parcela_ano = paste(cod_parcela,
                                                             p23_cdmedicao,
                                                             sep="_")) %>%
                              summarise(mean_DAP = mean(diametrocm, na.rm = TRUE))

max_plot <- mean_dbh_plot_first_year[
  which.max(mean_dbh_plot_first_year$mean_DAP), ]

min_plot <- mean_dbh_plot_first_year[
  which.min(mean_dbh_plot_first_year$mean_DAP), ]



binwidth_fd <- 2 * IQR(mean_dbh_plot_first_year$mean_DAP,
                       na.rm = TRUE) / length(mean_dbh_plot_first_year$mean_DAP)^(1/3)

ggplot(mean_dbh_plot_first_year,
       aes(x = mean_DAP)) +
  geom_histogram(binwidth = binwidth_fd,
                 fill = "steelblue",
                 color = "white") +

  geom_vline(xintercept = max_plot$mean_DAP,
             linetype = "dashed",
             color = "darkred") +

  geom_vline(xintercept = min_plot$mean_DAP,
             linetype = "dashed",
             color = "darkgreen") +

  annotate(
    "text",
    x = max_plot$mean_DAP,
    y = Inf,
    label = paste0("Max: ", max_plot$cod_parcela,
                   "\n(", round(max_plot$mean_DAP,
                                1),
                   " cm)"),
    vjust = 2,
    hjust = 1,
    color = "darkred",
    size = 3.5
  ) +

  annotate(
    "text",
    x = min_plot$mean_DAP,
    y = Inf,
    label = paste0("Min: ",
                   min_plot$cod_parcela,
                   "\n(",
                   round(min_plot$mean_DAP,
                         1),
                   " cm)"),
    vjust = 2,
    hjust = 0,
    color = "darkgreen",
    size = 3.5
  ) +

  theme_minimal() +
  labs(
    x = "Mean DBH (cm)",
    y = "Number of plots",
    title = "Distribution of mean DBH across permanent plots",
    subtitle = "Only measurement from the first year (before exploitation)")

Code

pps_classes <- pps %>%
  #group_by(cod_upa) %>%
  mutate(
    dbh_class = cut(
      diametrocm,
      breaks = seq(0, max(diametrocm,
                          na.rm = TRUE) + 10,
                   by = 10),
      right = FALSE))

ggplot(pps_classes,
       aes(x = diametrocm)) +
  geom_histogram(
    binwidth = 10,
    fill = "steelblue",
    color = "white") +
  facet_wrap(~ cod_upa, scales = "free_y") +
  theme_minimal() +
  labs(x = "DBH class (cm)",
       y = "Number of individuals",
       title = "Diameter class distribution by APU",
       subtitle = "Class width = 10 cm") +
  theme(strip.text = element_text(size = 8),
        axis.text.x = element_text(angle = 45, hjust = 1))

Code

ggplot(pps_classes,
       aes(x = diametrocm)) +
  geom_histogram(
    binwidth = 10,
    fill = "steelblue",
    color = "white") +
  facet_wrap(~ cod_parcela, scales = "fixed") +
  theme_minimal() +
  labs(x = "DBH class (cm)",
       y = "Number of individuals",

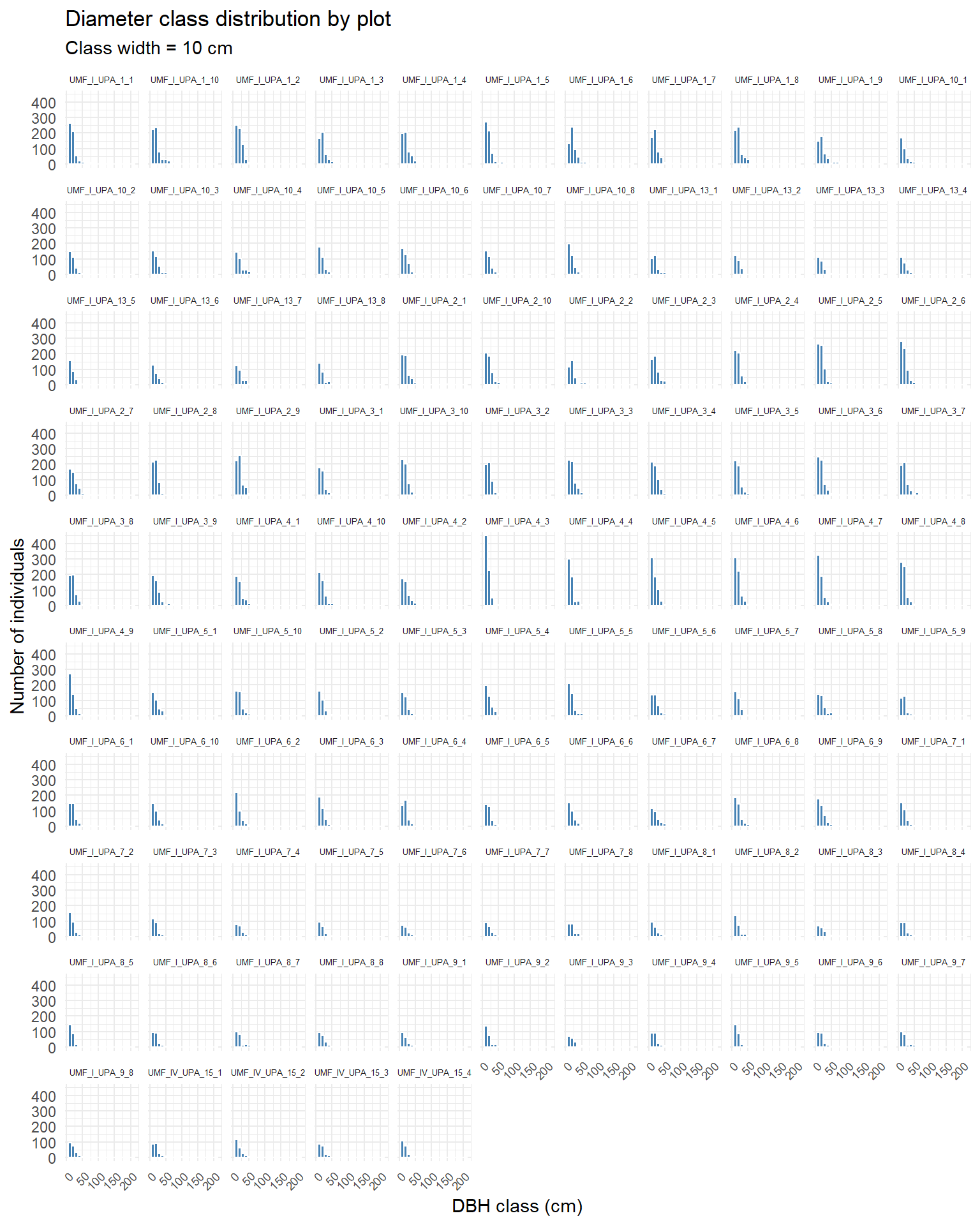

       title = "Diameter class distribution by plot",
       subtitle = "Class width = 10 cm") +
  theme(axis.text.x = element_text(angle = 45,
                                   hjust = 1,
                                   size = 7),
        strip.text.x = element_text(size = 5))

Warning

We can see most of the plots exhibit an “inverse J” distribution.

4.4.6 Temporal dynamics

Now let’s see mean DBH change along the years of measurement.

Code

mean_dbh_plot_first_year$class <- cut(
  mean_dbh_plot_first_year$mean_DAP,
  breaks = quantile(mean_dbh_plot_first_year$mean_DAP,
                    probs = seq(0, 1, 0.2),
                    na.rm = TRUE),
  include.lowest = TRUE)

mean_dbh_plot_year <- pps %>%
  group_by(cod_upa, cod_parcela, p23_cdmedicao,
           exploit_year) %>%
  summarise(mean_dbh = mean(diametrocm,
                            na.rm = TRUE),
            .groups = "drop")

anos <- sort(unique(mean_dbh_plot_year$p23_cdmedicao))

ggplot(mean_dbh_plot_year,
       aes(x = p23_cdmedicao,
           y = mean_dbh,
           group = cod_parcela)) +
  geom_line(alpha = 0.6) +
  geom_point(size = 1.5,
             alpha = 0.8) +

  ## Ano de exploração
  geom_vline(
    aes(xintercept = exploit_year),
    linetype = "dashed",
    color = "red",
    linewidth = 0.6) +
  facet_wrap(~ cod_upa,
             scales = "free_x") +
  scale_x_continuous(
    breaks = anos,
    labels = anos) +

  theme_minimal() +
  theme(axis.text.x = element_text(angle = 45,
                                   hjust = 1)) +

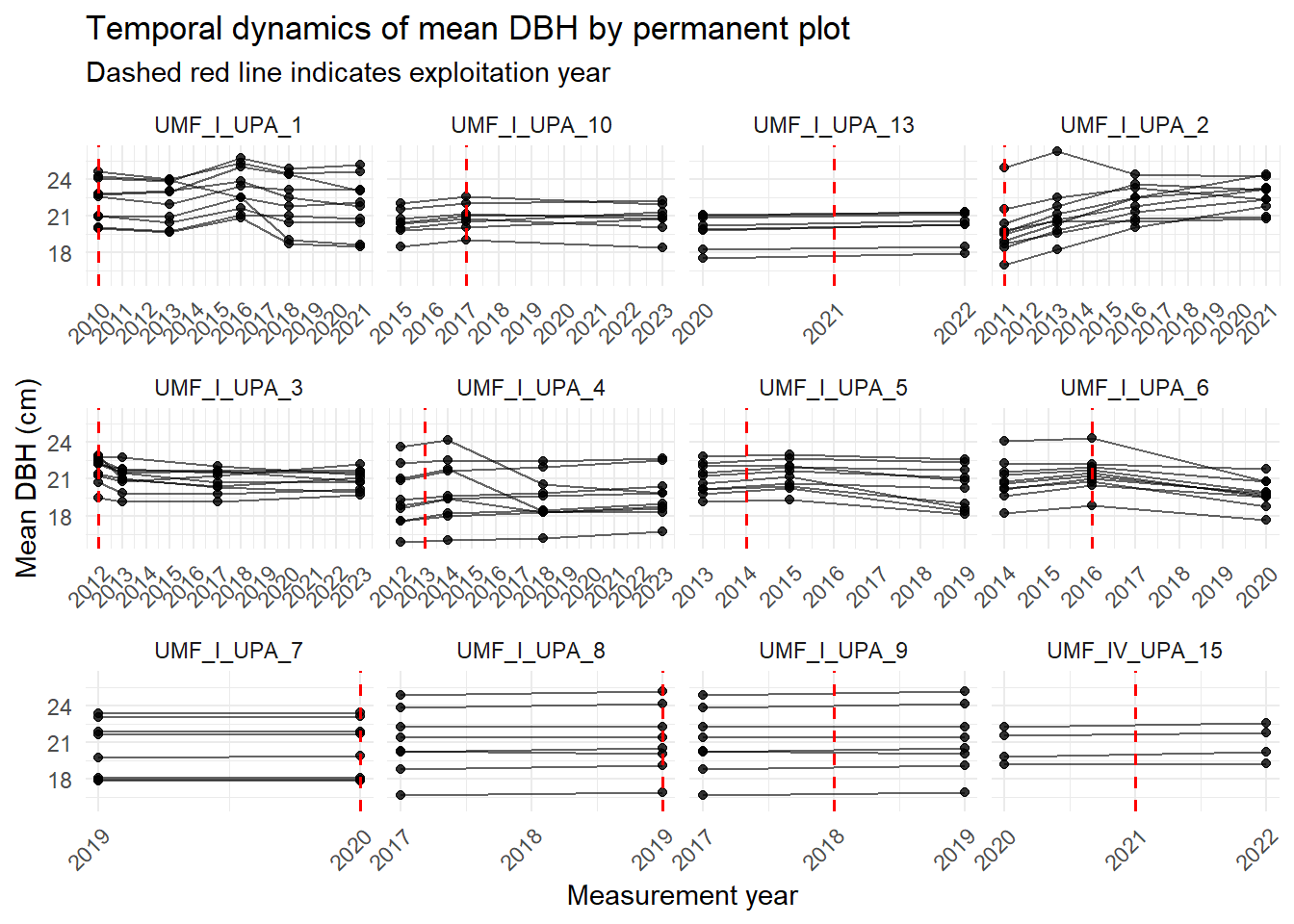

  labs(
    x = "Measurement year",
    y = "Mean DBH (cm)",
    title = "Temporal dynamics of mean DBH by permanent plot",
    subtitle = "Dashed red line indicates exploitation year")
