8  Estimate biomass with different total height estimations

8.1 Introduction

This script estimates Above-Ground Biomass (AGB) for a given Annual Production Unit in the Jamari Forest Concession using two different total height estimates: one derived from LiDAR (see Chapter 7), and the other obtained via the rerieveH function from BIOMASS package (Réjou-Méchain et al. (2017)).

We also estimate biomass with only DBH using three different equations: Chave et al. (2014), Nogueira et al. (2008) and Melo et al. (2024).

Finally, the results from these approaches are compared to assess the impact of height estimation and equation choice on biomass estimates.

8.2 Lecture

  • CHM generation: Fischer et al. (2024).
  • BIOMASS package: Réjou-Méchain et al. (2017).
  • Chave’s allometric equation: Chave et al. (2014).
  • Nogueira’s allometric equation: Nogueira et al. (2008).
  • Melo’s allometric equation: Melo et al. (2024).

8.3 Setup

You need BIOMASS package to estimate the biomass, dplyr and tidyr to manipulate tabular data and ggplot to visualization.

Code
library(BIOMASS)
library(dplyr)
library(tidyr)
library(ggplot2)

8.4 Allometric equations parameters

Some parameters used to build the allometric equations used in this workflow. It is important to see if the allometric equation is suitable for the data.

Code
allo_equations <- openxlsx::read.xlsx("data/allometric_eq/Equações alométricas.xlsx",
                                     rows = c(1, 3, 8, 20, 22),
                                     cols = 1:7)

allo_equations %>%
   kableExtra::kbl(caption = "Allometric equations parameters") %>%
   kableExtra::kable_classic(full_width = FALSE)
Allometric equations parameters
Study Region Phytophysiognomy Number.of.measured.trees Minimum.DBH Maximum.DBH AGB.equation
Nogueira et al., 2008 Southern amazonia FOA 300 5 124 ln(Dry weight)=-1.716 (±0.079) + 2.413 (±0.029) × ln(Diameter)
Melo et al., 2024 Floresta Estadual do Antimary FOA com palmeiras 190 5 90 DMtw = 0,064 * DBH2,671 + 3,69
Chave et al., 2014 Pantropical 53 undisturbed and 5 secondary 4004 5 212 AGBest = 0,0673 x (q * D2 * H)0,976
Chave et al., 2014 without height, modified by Réjou-Méchain et al., 2017 _ _ _ _ _ AGB = exp(-2,024 - 0,896 * E + 0,920 * ln(WD) + 2,795 * ln(DAP) - 0,0461 * [ln(DAP)2])

8.5 Load the Inventory

Let’s load the Commercial Forest Inventory with the different height estimations.

Code
if100 <- read.csv("output/tree_height/all_tables.csv")

Making sure what Annual Production Unit and Forest Management Unit we are working with.

Code
print(paste0(if100$flona[1],
             " UMF ",
             if100$umf[1],
             " UPA ",
             if100$upa[1]))
[1] "Jamari UMF 1 UPA 10"

8.6 Retrieving height from BIOMASS

retriveH function in `BIOMASS package estimates tree total height using allometric equation from Feldpausch et al. (2011), based on the location of the trees. It uses a Weibull function to estimate height from the diameter of the tree, based on a large number of plots.

The coordinates in this script refer to Jamari National Forest.

Code
altura_feld <- retrieveH(D = if100$DAP,
                         coord = c(-62.99,
                                   -9.11
                                   ))

if100$altura_feld <- altura_feld$H

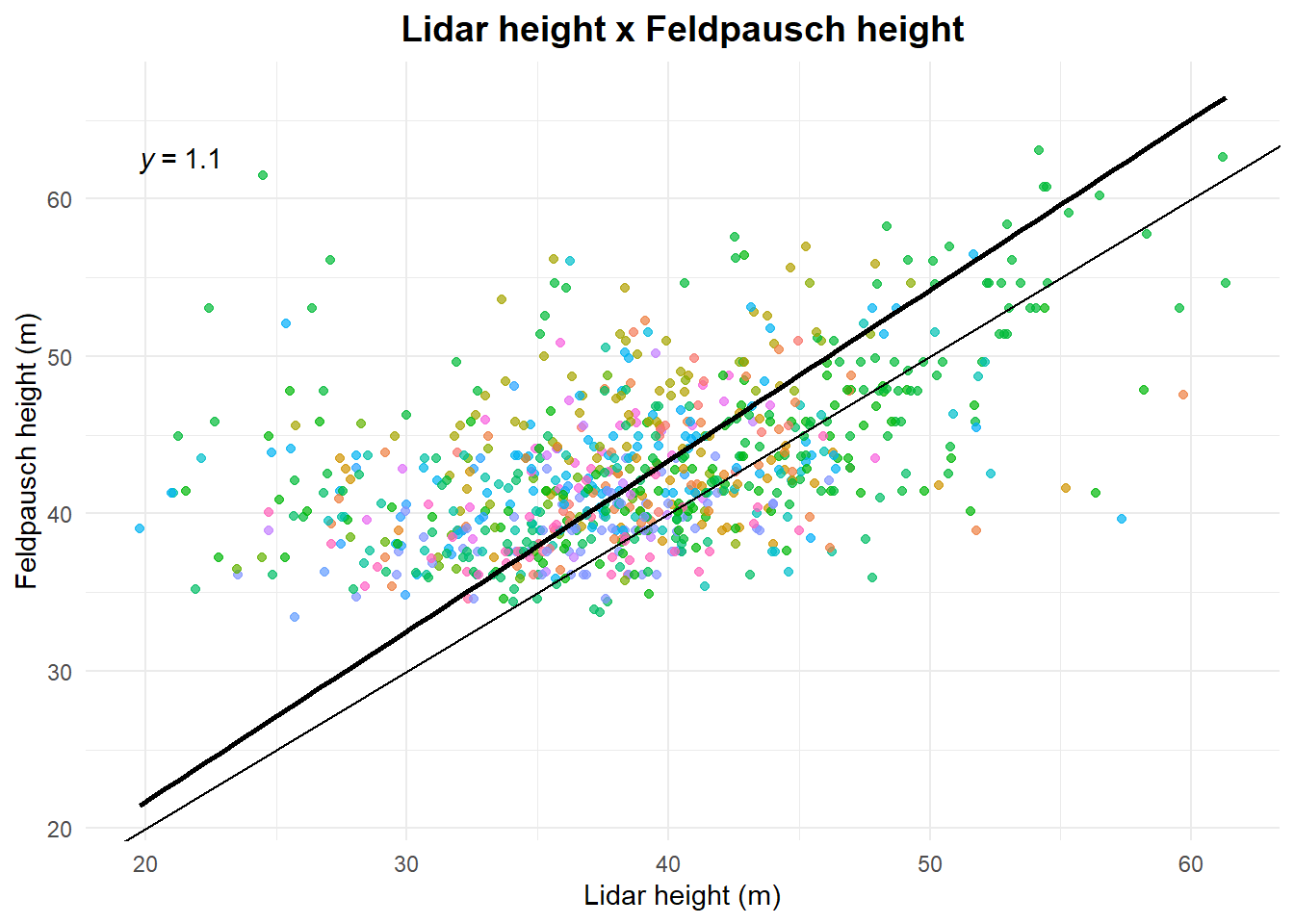

See relation between height from retrieveH and obtained with Lidar.

Code
ggplot(if100,
       aes(x = z_lidar,
           y = altura_feld)) +
  geom_point(alpha = 0.7,
             aes(color = nome_florabr)
             ) +
  geom_smooth(method = "lm",
              se = FALSE,
              color = "black",
              formula = 'y ~ 0 + x') +
  theme_minimal() +
  labs(
    title = "Lidar height x Feldpausch height",
    x = "Lidar height (m)",
    y = "Feldpausch height (m)"
#    ,color = "Species"
  ) +
  theme(
    plot.title = element_text(hjust = 0.5,
                              size = 14,
                              face = "bold")
    ,legend.position="none"
 #   ,legend.title = element_text(face = "bold")
  ) +
  geom_abline() +
  ggpubr::stat_regline_equation(formula = 'y ~ 0 + x')

8.7 Retrieving wood density

Then we correct scientific names in the table. For this we will use correctTaxo from BIOMASS. This function needs a “genus” and a “species” column.

Code
#
if100 <- if100 %>%
              separate(nome_florabr,
                      into = c("genus",
                               "epithet"),
                      sep = " ",
                      extra = "merge",
                      remove = F)

#taxo <- correctTaxo(genus=if100$genus,
#                    species=if100$epithet,
#                    useCache = T)

w_density <- getWoodDensity(genus = if100$genus,
                            species = if100$epithet)

8.8 Estimating biomass

8.8.1 Estimating biomass with total height

We estimated only some of the commercial species tree height using Lidar. We will remove all trees without Lidar estimated height, so we can compare AGB estimates. We need a new taxo for the reduced data frame.

Code
if100.red <- if100[!is.na(if100$z_lidar), ]

#taxo.red <- correctTaxo(genus=if100.red$genus,
#                        species=if100.red$epithet,
#                        useCache = F)

Then we get the wood density of each species.

Code
w_density.red <- getWoodDensity(genus = if100.red$genus,
                                species = if100.red$epithet)

Compute AGB with Chave et al. (2014) equation and Feldpausch et al. (2011) height.

Code
if100.red$AGB_chave_feld <- computeAGB(D = if100.red$DAP,
                                       WD = w_density.red$meanWD,
                                       H = if100.red$altura_feld)
# AGB = 0.0673 * (WD * H * D^2)^0.976

Compute AGB with Chave et al. (2014) equation and Lidar height.

Code
if100.red$AGB_chave_lidar <- computeAGB(D = if100.red$DAP,
                                        WD = w_density.red$meanWD,
                                        H = if100.red$z_lidar)
# AGB = 0.0673 * (WD * H * D^2)^0.976

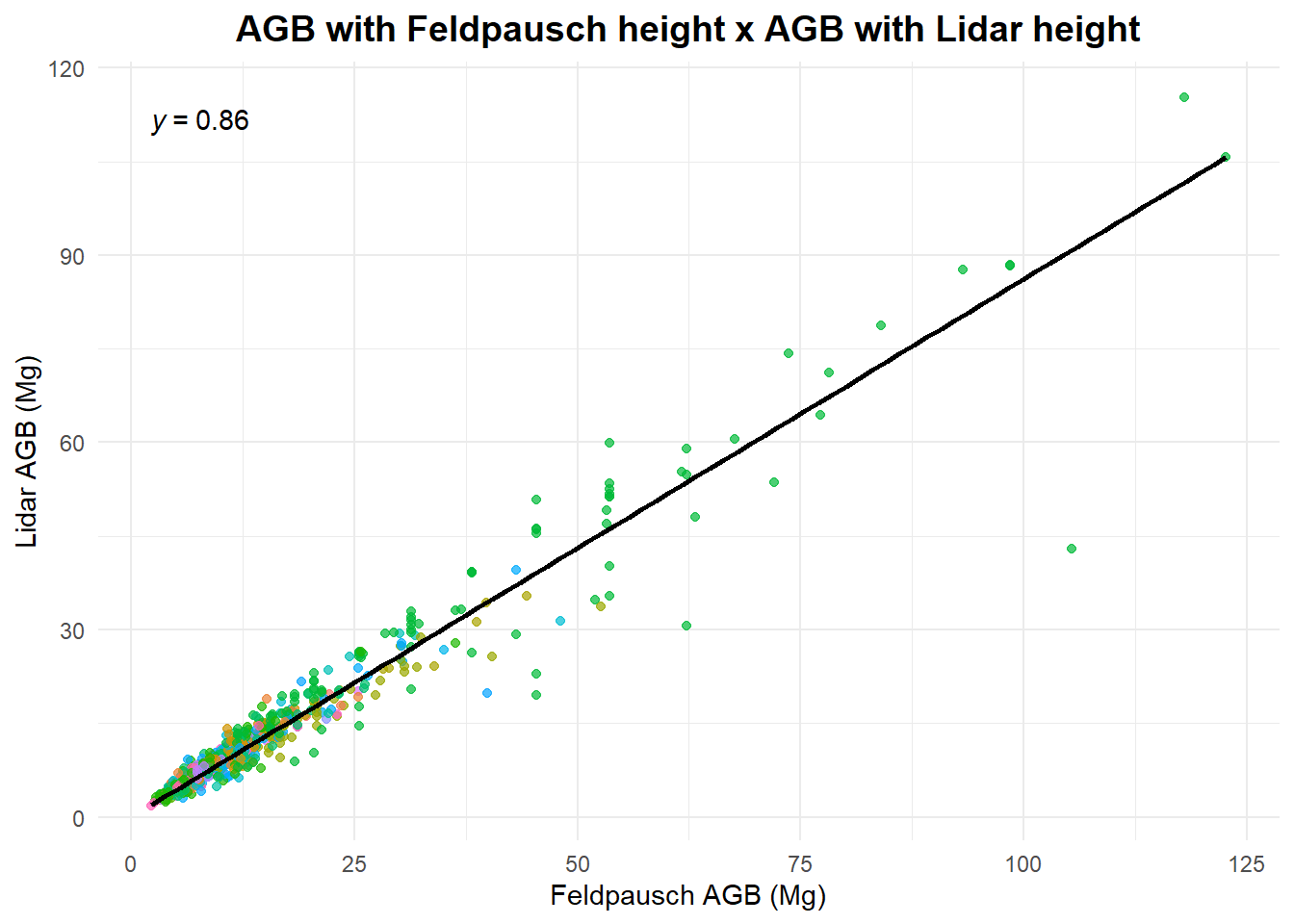

Now let’s compare the different AGB estimates.

Code
ggplot(if100.red,
       aes(x = AGB_chave_feld,
           y = AGB_chave_lidar)) +
  geom_point(alpha = 0.7,
             aes(color = nome_florabr)) +
  geom_smooth(method = "lm",
              se = FALSE,
              color = "black",
              formula = 'y ~ 0 + x') +
  theme_minimal() +
  labs(
    title = "AGB with Feldpausch height x AGB with Lidar height",
    x = "Feldpausch AGB (Mg)",
    y = "Lidar AGB (Mg)",
    color = "Species"
  ) +
  theme(
    plot.title = element_text(hjust = 0.5,
                              size = 14,
                              face = "bold"),
    legend.title = element_text(face = "bold")
    ,legend.position="none"
  ) +
  ggpubr::stat_regline_equation(formula = 'y ~ 0 + x')

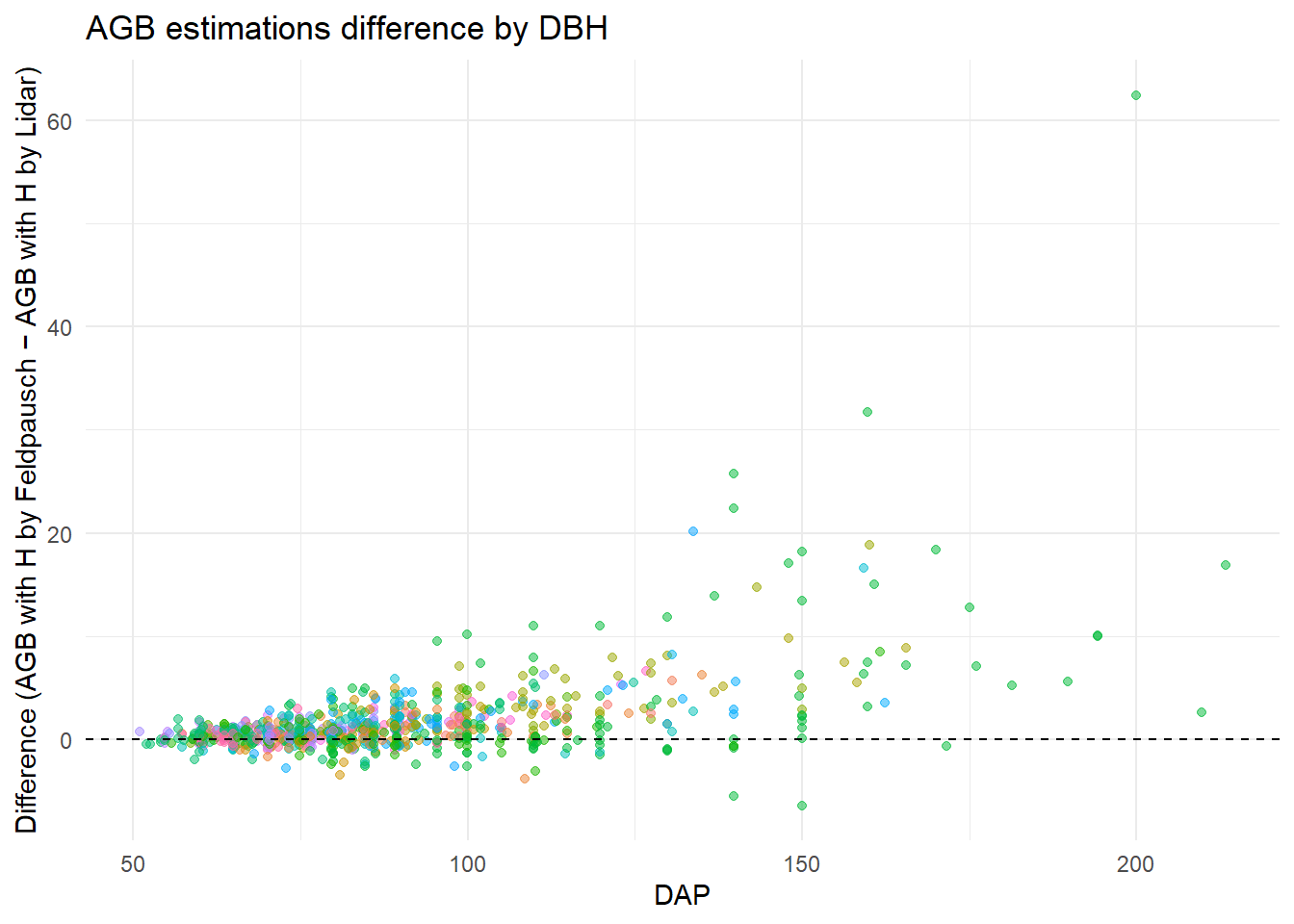

Is the difference between the biomass estimates different across the DBHs? Comparing AGB estimates with different heights estimates across DBHs.

Code
if100.red$diff_agbs_h <- if100.red$AGB_chave_feld - if100.red$AGB_chave_lidar

ggplot(if100.red,
       aes(x = DAP,
           y = diff_agbs_h)) +
  geom_point(alpha = 0.5,
             aes(color = nome_florabr)) +
  geom_hline(yintercept = 0,
             linetype = "dashed") +
  theme_minimal() +
  theme(,legend.position="none")+
  labs(x = "DAP", y = "Difference (AGB with H by Feldpausch − AGB with H by Lidar)",
       title = "AGB estimations difference by DBH")

8.8.2 Estimating biomass using only DBH

We will use Chave et al. (2014), Nogueira et al. (2008) e Melo et al. (2024) equations to estimate AGB using only DBH.

It is important to point out that Nogueira et al. (2008) and Melo et al. (2024) uses only DBH, whereas Chave et al. (2014) uses, in addition to DBH, wood density and a variable representing environmental stress (see Réjou-Méchain et al. (2017) for the minor modification in Chave et al. (2014) equation used in BIOMASS).

Code
if100$AGB_chave_dbh <- computeAGB(D = if100$DAP,
                                  WD = w_density$meanWD,
                                  coord = c(-62.99,
                                            -9.11))
# AGB =  exp(-2,024 - 0,896 * E + 0,920 * ln(WD) + 2,795 * ln(DAP) - 0,0461 * [ln(DAP)^2])

if100$AGB_nog_dbh <- (exp(-1.716 + 2.413 * log(if100$DAP))) / 1000
# We have to divide results by 1000 because equation gives AGB in kg

if100$AGB_melo_dbh <- (0.064 * (if100$DAP^2.671) + 3.69) / 1000
# We have to divide results by 1000 because equation gives AGB in kg

To plot the three equations results in the same graph, we must convert data to LONG format.

Code
df_long <- if100 |>
  pivot_longer(
    cols = c(AGB_chave_dbh, AGB_nog_dbh, AGB_melo_dbh),
    names_to = "equation",
    values_to = "biomass"
  )

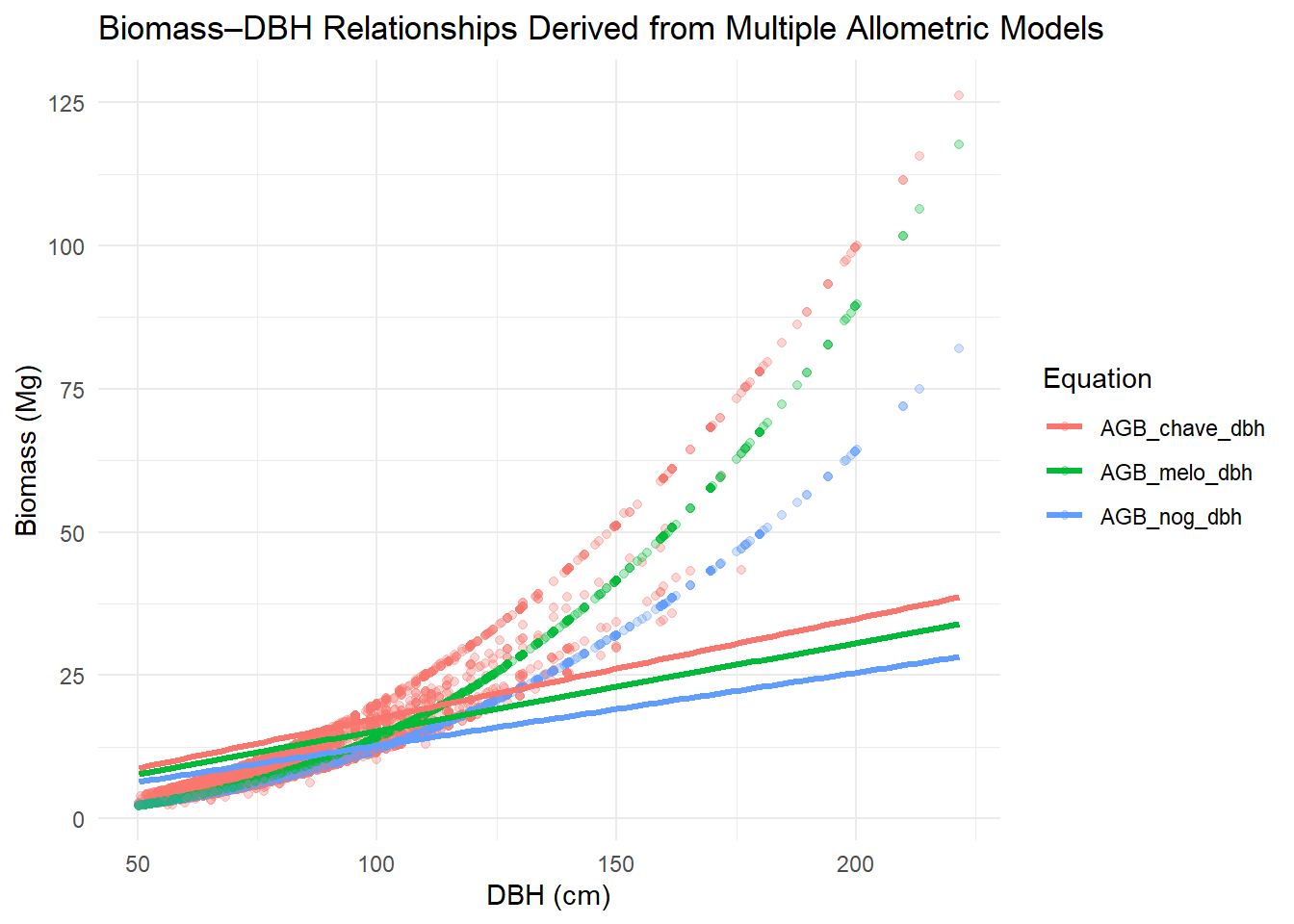

Now let’s plot them.

Code
ggplot(df_long,
       aes(x = DAP,
           y = biomass,
           color = equation)) +
  geom_point(alpha = 0.3) +            # pontos opcionais
  geom_smooth(method = "lm",
              se = FALSE,
              linewidth = 1.2,
              formula = 'y ~ 0 + x') + # linhas das equações
  theme_minimal() +
  labs(
    title = "Biomass–DBH Relationships Derived from Multiple Allometric Models",
    x = "DBH (cm)",
    y = "Biomass (Mg)",
    color = "Equation"
  )

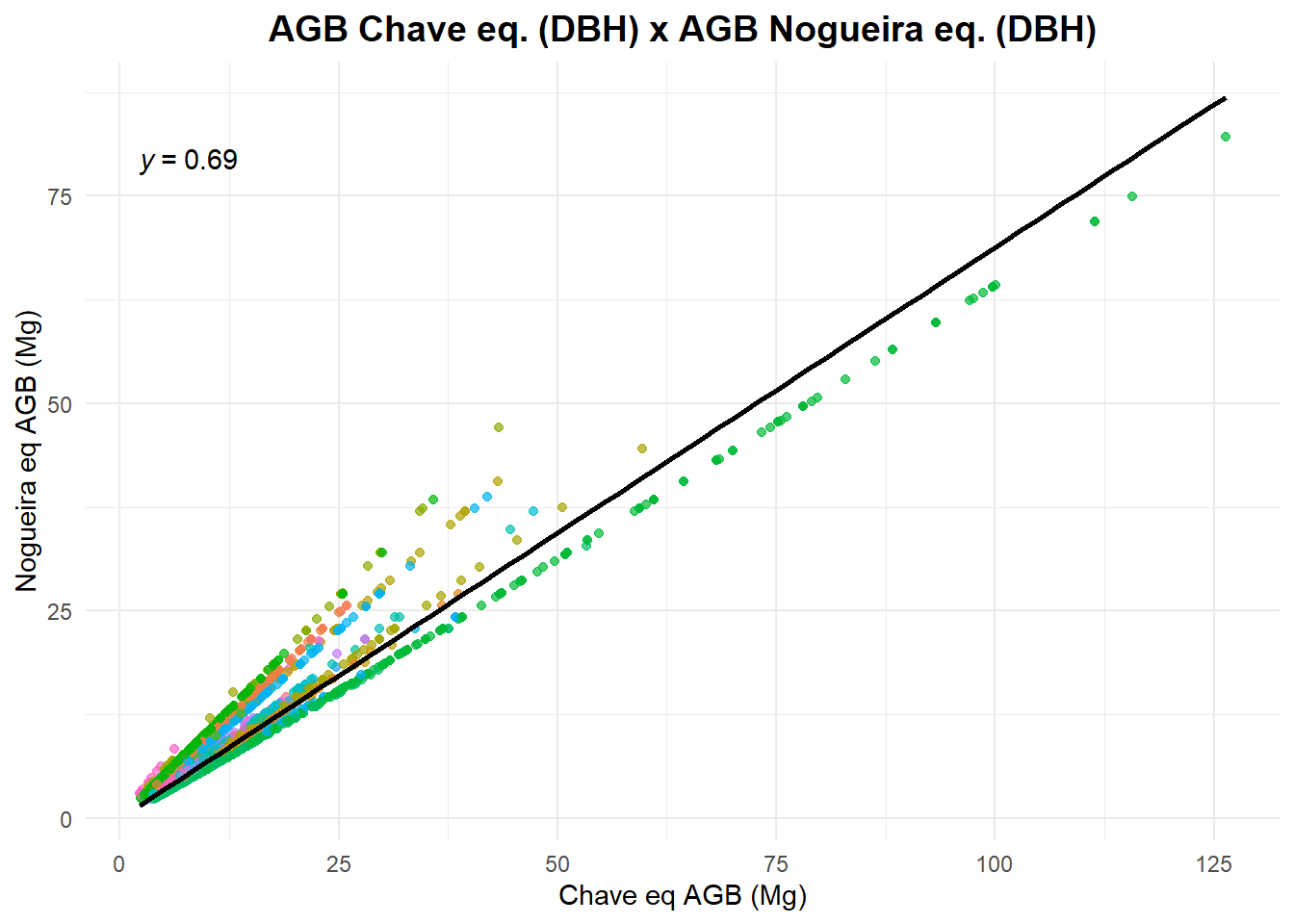

Now let’s compare the different AGB estimates.

Code
ggplot(if100,
       aes(x = AGB_chave_dbh,
           y = AGB_nog_dbh)) +
  geom_point(alpha = 0.7,
             aes(color = nome_florabr)) +
  geom_smooth(method = "lm",
              se = FALSE,
              color = "black",
              formula = 'y ~ 0 + x') +
  theme_minimal() +
  labs(
    title = "AGB Chave eq. (DBH) x AGB Nogueira eq. (DBH)",
    x = "Chave eq AGB (Mg)",
    y = "Nogueira eq AGB (Mg)",
    color = "Species"
  ) +
  theme(
    plot.title = element_text(hjust = 0.5,
                              size = 14,
                              face = "bold"),
    legend.title = element_text(face = "bold")
    ,legend.position="none"
  ) +
  ggpubr::stat_regline_equation(formula = 'y ~ 0 + x')

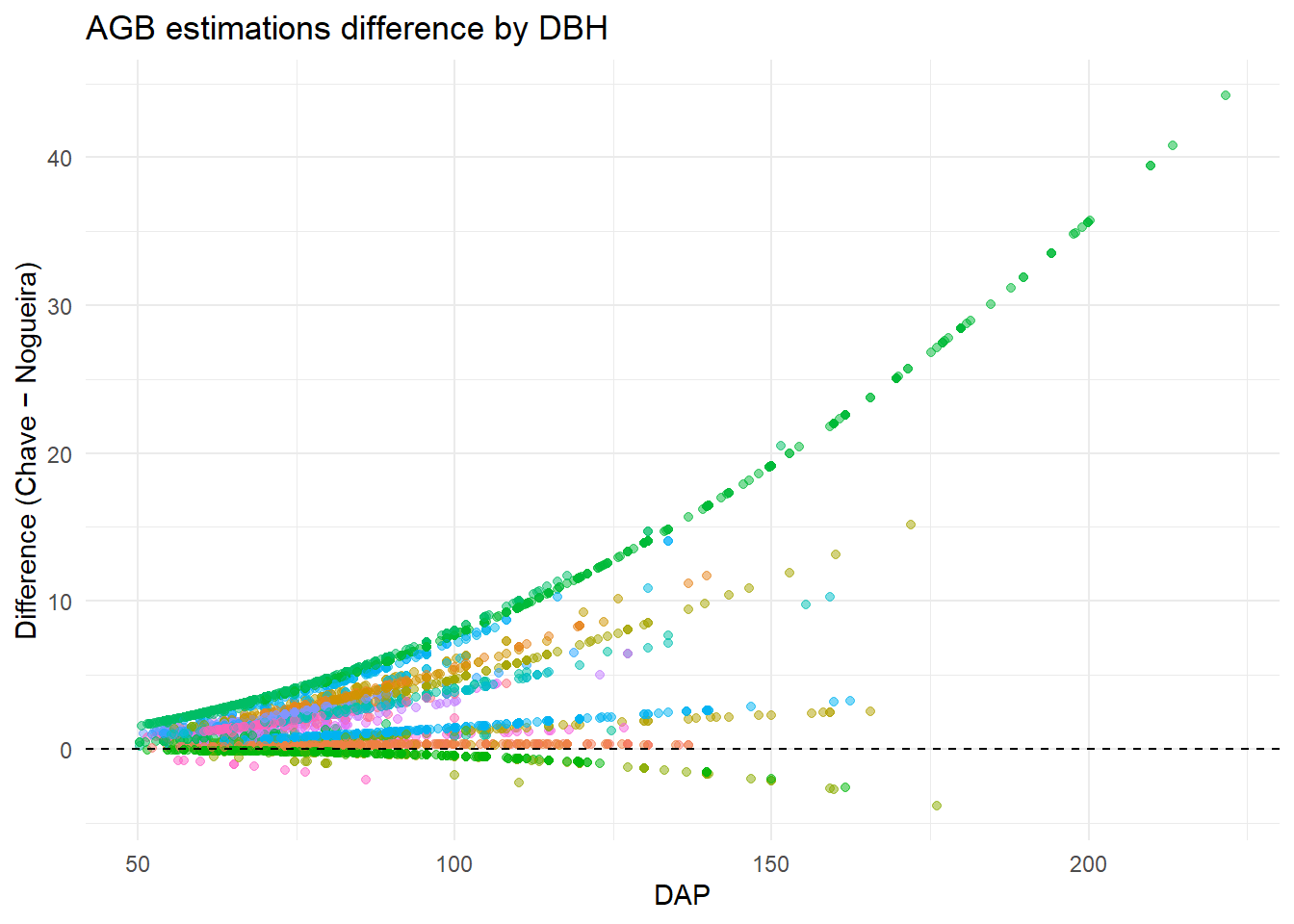

Is the difference between the biomass estimates different across the DBHs? Comparing Chave et al. (2014) x Nogueira et al. (2008) equations estimates across DBHs.

Code
if100$diff_agbs <- if100$AGB_chave_dbh - if100$AGB_nog_dbh

ggplot(if100,
       aes(x = DAP,
           y = diff_agbs)) +
  geom_point(alpha = 0.5,
             aes(color = nome_florabr)) +
  geom_hline(yintercept = 0,
             linetype = "dashed") +
  theme_minimal() +
  theme(legend.position="none")+
  labs(x = "DAP", y = "Difference (Chave − Nogueira)",
       title = "AGB estimations difference by DBH")

8.9 Comparing biomass estimates using only DBH and using DBH + Height

Comparing AGB estimate using only DBH and using DBH + height obtained by Lidar. We will use results from Chave et al. (2014) equations (with and without height).

To plot the equations results in the same graph, we must convert data to LONG format.

Code
if100.red <- left_join(
                      if100.red,
                      if100 %>% select(id_arv,
                                       AGB_chave_dbh,
                                       AGB_nog_dbh,
                                       AGB_melo_dbh),
                      by = "id_arv"
                      )
Warning in left_join(if100.red, if100 %>% select(id_arv, AGB_chave_dbh, : Detected an unexpected many-to-many relationship between `x` and `y`.
ℹ Row 531 of `x` matches multiple rows in `y`.
ℹ Row 2661 of `y` matches multiple rows in `x`.
ℹ If a many-to-many relationship is expected, set `relationship =
  "many-to-many"` to silence this warning.
Code
if100.red_long <- if100.red |>
                  pivot_longer(
                              cols = c(AGB_chave_dbh,
                                       AGB_nog_dbh,
                                       AGB_melo_dbh,
                                       AGB_chave_feld,
                                       AGB_chave_lidar),
                              names_to = "equation",
                              values_to = "biomass"
                              )

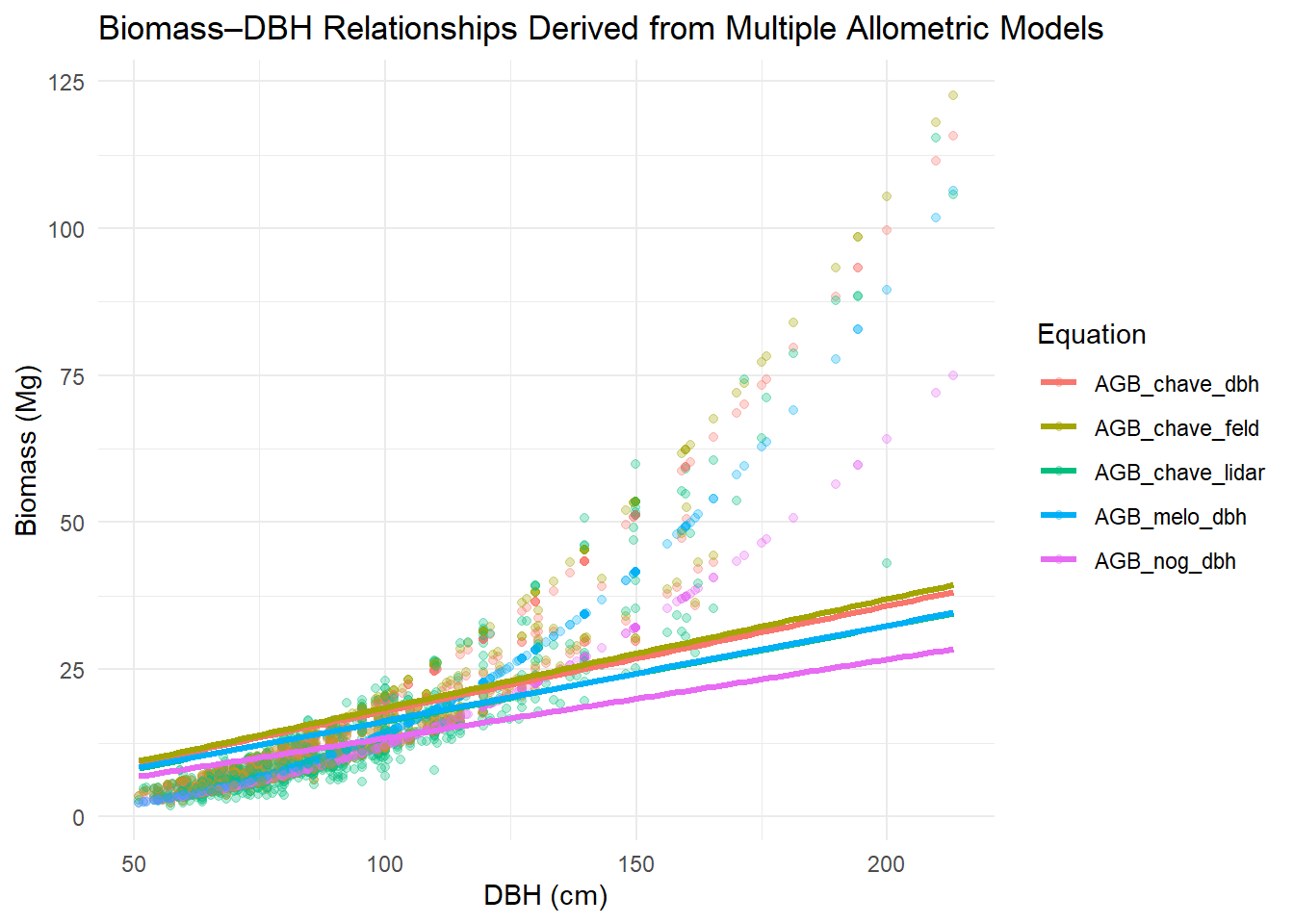

Now let’s plot

Code
ggplot(if100.red_long,
                aes(x = DAP,
                    y = biomass,
                    color = equation)) +
  geom_point(alpha = 0.3) +            # pontos opcionais
  geom_smooth(method = "lm",
              se = FALSE,
              linewidth = 1.2,
              formula = 'y ~ 0 + x') + # linhas das equações
  theme_minimal() +
  labs(
    title = "Biomass–DBH Relationships Derived from Multiple Allometric Models",
    x = "DBH (cm)",
    y = "Biomass (Mg)",
    color = "Equation"
  )
