6  Workflow to extract tree height from Lidar CHM

6.1 Introduction

This is a pilot script to extract tree heights from a Canopy Height Model (CHM) generated from LiDAR-derived point clouds in a forest management area. Two CHMs are used: one from the year before harvesting (2015) and one from the year after harvesting (2017). Data from the Commercial Forest Inventory of the area are also incorporated (generated by the Chapter 3 script).

The goal is to identify the crowns of harvested trees and obtain their heights from the CHM metrics. To ensure transparency and reproducibility, outputs will be generated at each processing step, allowing one to clearly see how the final results were obtained.

6.2 Lecture

  • CHM generation: Fischer et al. (2024).

6.3 Setup

You need terra package to handle spatial data and dplyr to manipulate tabular data.

Code
library(terra)
library(dplyr)

6.4 Working directories

First we set our working directories: the main one, the output, the location of CHMs, and the location of Forest Inventory.

Code
lid.antes <- "data/chm/JAM01_2015_chm_lspikefree.tif"

lid.depois <- "data/chm/JAM02_2017_chm_lspikefree.tif"

if100_pesquisa <- "output/if100/if100_romaneio_madeflona.csv"

6.5 Parameters

Then we set the script parameters.

lim_inf = Percentage points threshold to be considered as a gap. When subtracting two CHMs the output difference can be full of noises (a branch that broke or moved for example). Setting a threshold ensures we will select only the large differences.

pol_area = Minimum area to be considered as a gap (m2).

projection = Projection of spatial data.

buffer_size = Buffer size around each tree to avoid confusing very close trees and also to identify the associated gap.

percentil = Percentile used to extract maximum height in the identified canopy area.

upa.piloto = Annual Production Unit used in this test.

umf = Forest Management Unit used in this test.

Code
lim_inf <- 0.05

pol_area <- 25

projection <- "EPSG:31980"

buffer_size <- 20

percentil <- 0.95

upa.piloto <- "6"

umf <- "1"

6.6 Data

The CHMs were generated by Fabian Fischer from Brazilian Forest Concessions Lidar data, using the method described in Fischer et al. (2024).

Commercial inventories were obtained from Brazilian Forest Concessions.

6.7 Running Code

6.8 CHM processing

Load the CHMs and assign the projection.

Code
r1 <- rast(lid.antes)
r2 <- rast(lid.depois)

crs(r1) <- projection
crs(r2) <- projection

Clip the CHMs intersection area.

Code
ext_intersect <- terra::intersect(ext(r1), ext(r2))

r1_crop <- crop(r1,
                ext_intersect)
r2_crop <- crop(r2,
                ext_intersect)

Subtract CHM after exploitation from CHM before exploitation and keep only valid pixels.

Code
diff_raster <- r2_crop - r1_crop

diff_raster <- mask(diff_raster,
                    (!is.na(r1_crop) & !is.na(r2_crop)))

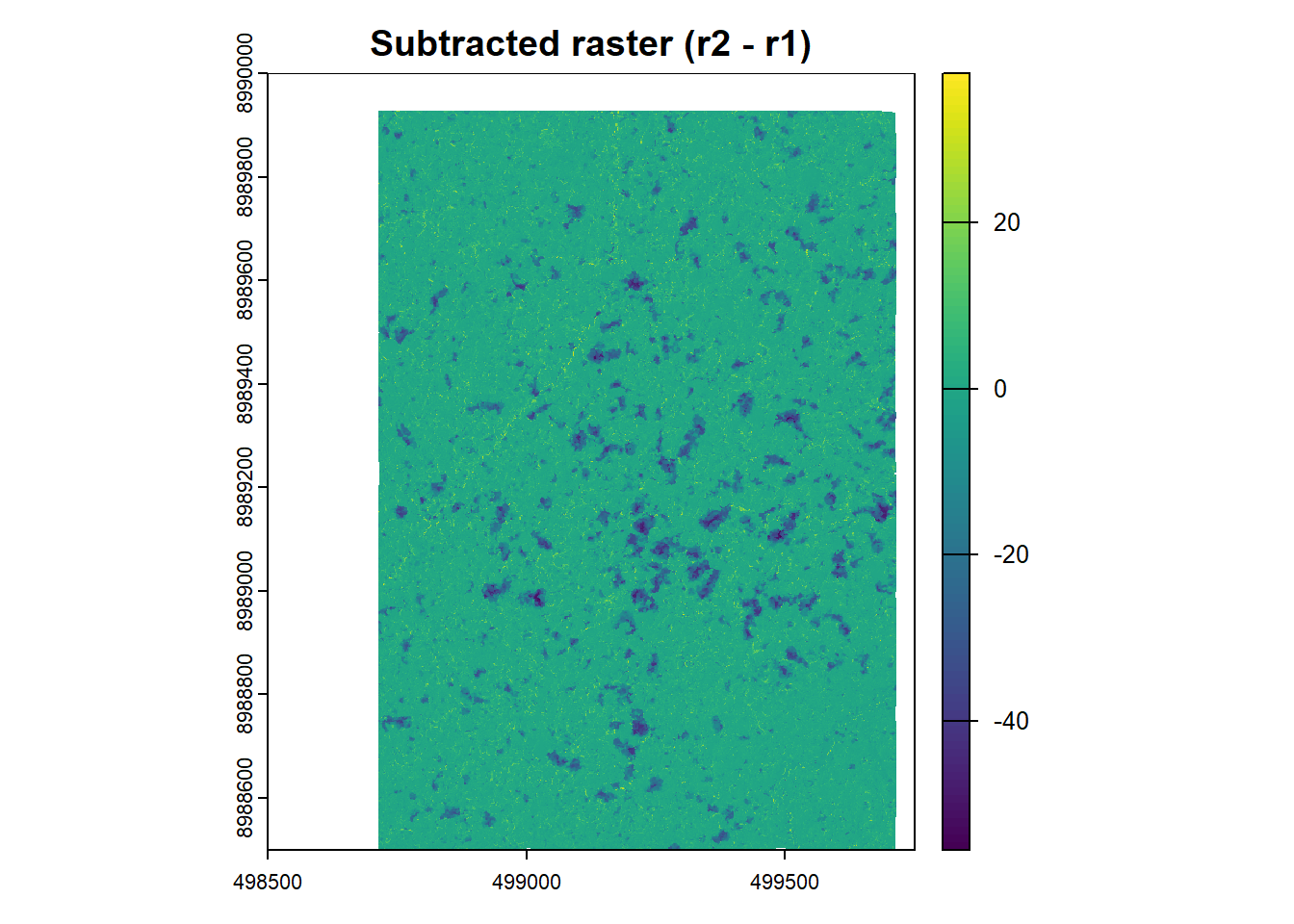

Visualize the result.

Code
plot(diff_raster,
     main = "Subtracted raster (r2 - r1)")

Keep only the higher differences between the two CHMs, to ensure that are really gaps from the exploitation, using the threshold defined before (lim_inf).

Code
q1 <- quantile(values(diff_raster),
               probs = lim_inf,
               na.rm = TRUE)

r_low <- diff_raster
r_low[diff_raster > q1] <- NA
r_low[!is.na(r_low)] <- 1

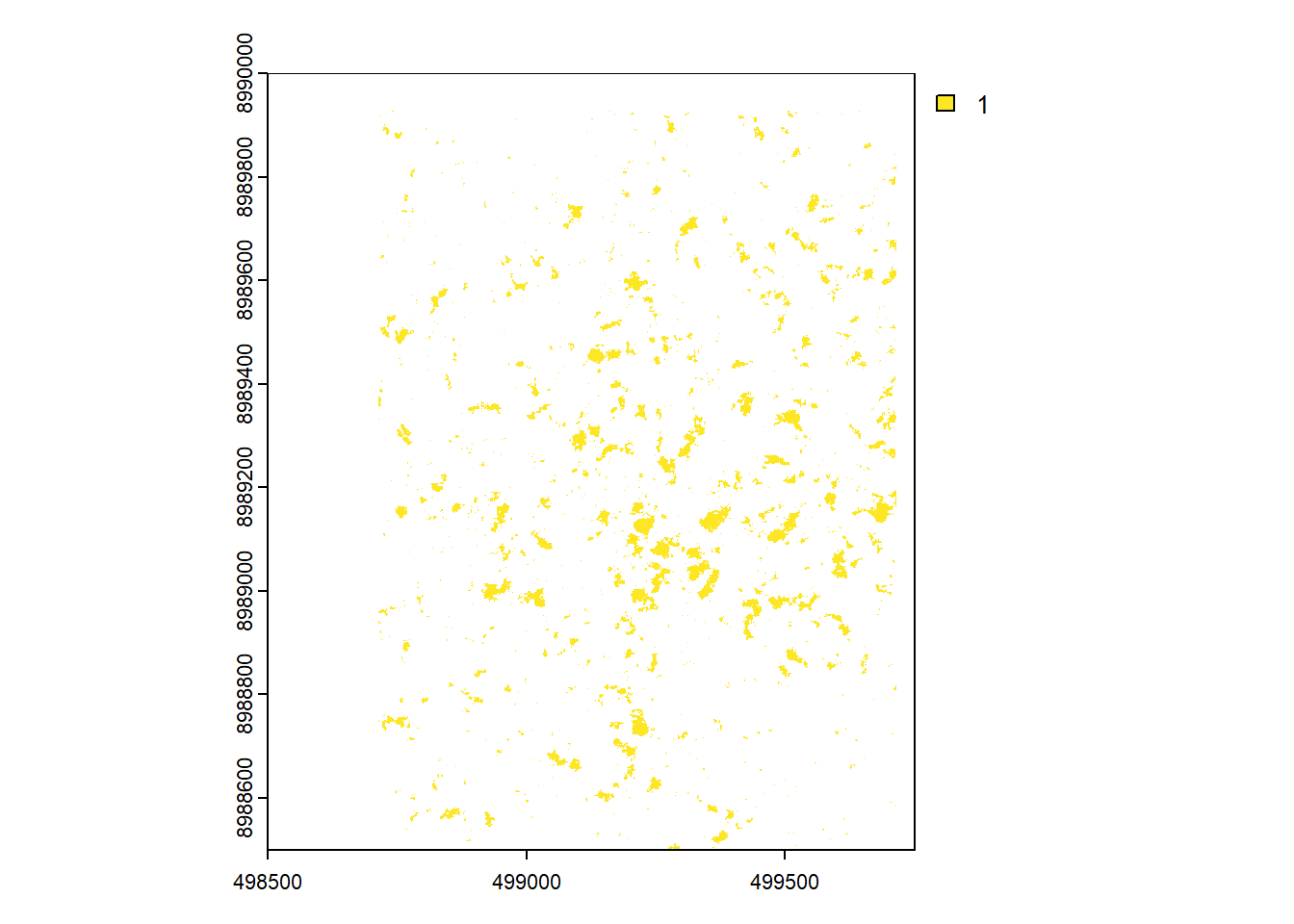

Visualize the filtered result

Code
plot(r_low)

Convert the result to polygons, project them, calculate area and filter them using the minimum area defined before (pol_area).

Code
r_low_patches <- patches(r_low, directions = 8)
poly_low <- as.polygons(r_low_patches,
                        dissolve = T,
                        na.rm = TRUE)

crs(poly_low) <- projection

poly_low$area_m2 <- expanse(poly_low,
                            unit = "m")

poly_filtrado <- poly_low[poly_low$area_m2 > pol_area, ]

Visualizing the results.

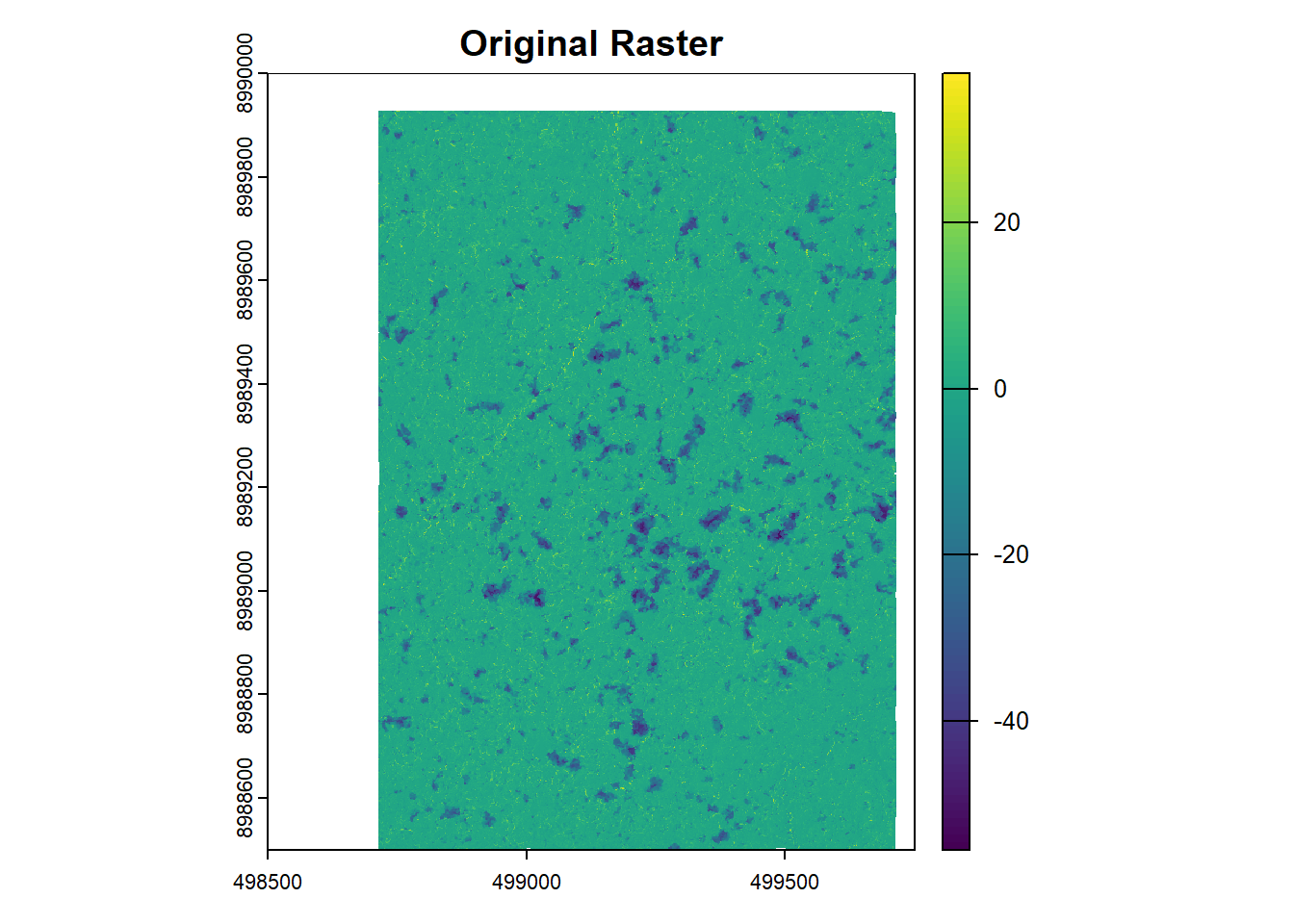

The original raster (r2 - r1).

Code
plot(diff_raster,
     main = "Original Raster")

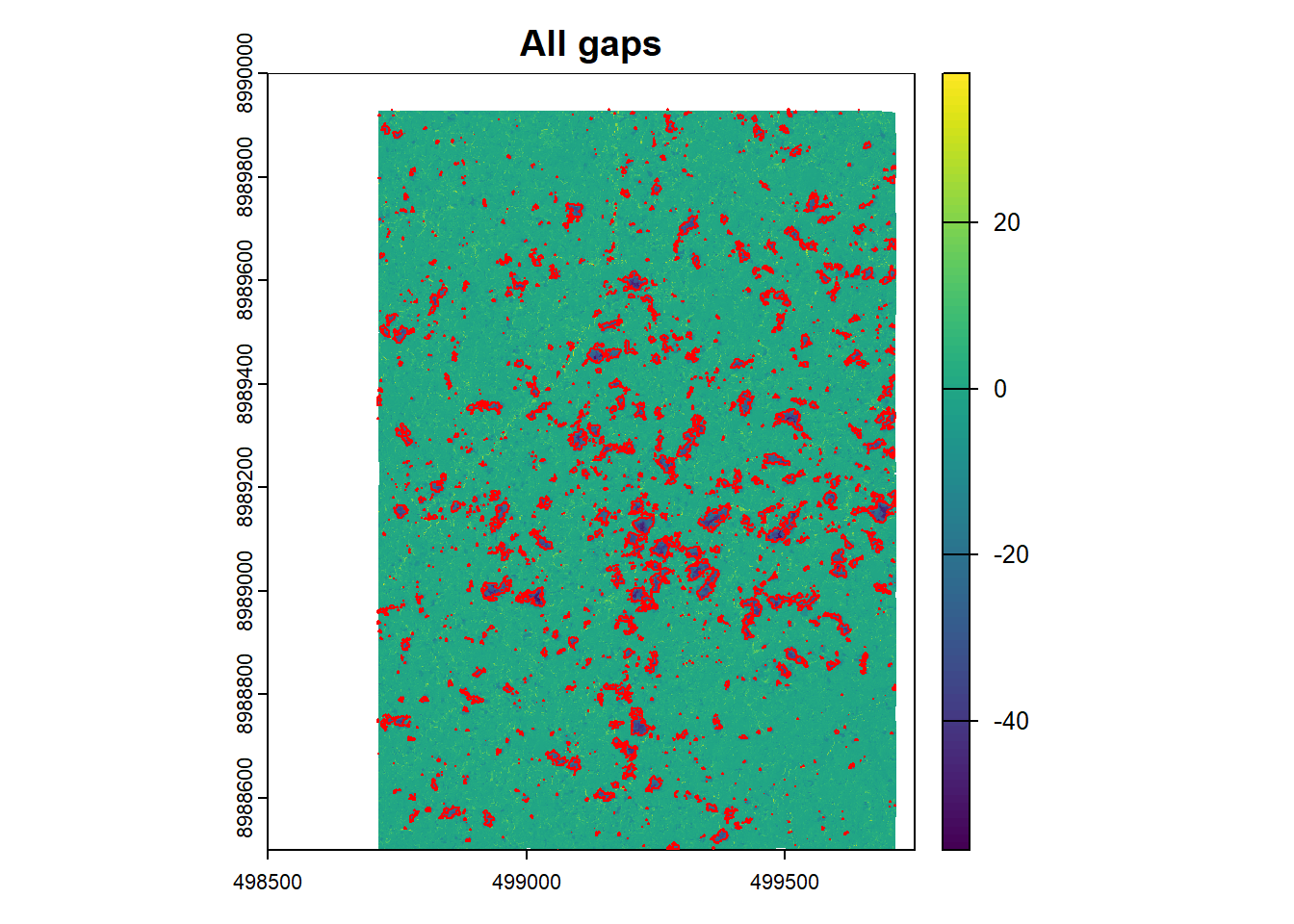

All the gaps.

Code
plot(diff_raster,
     main = "All gaps")
plot(poly_low,
     border = "red",
     add = T)

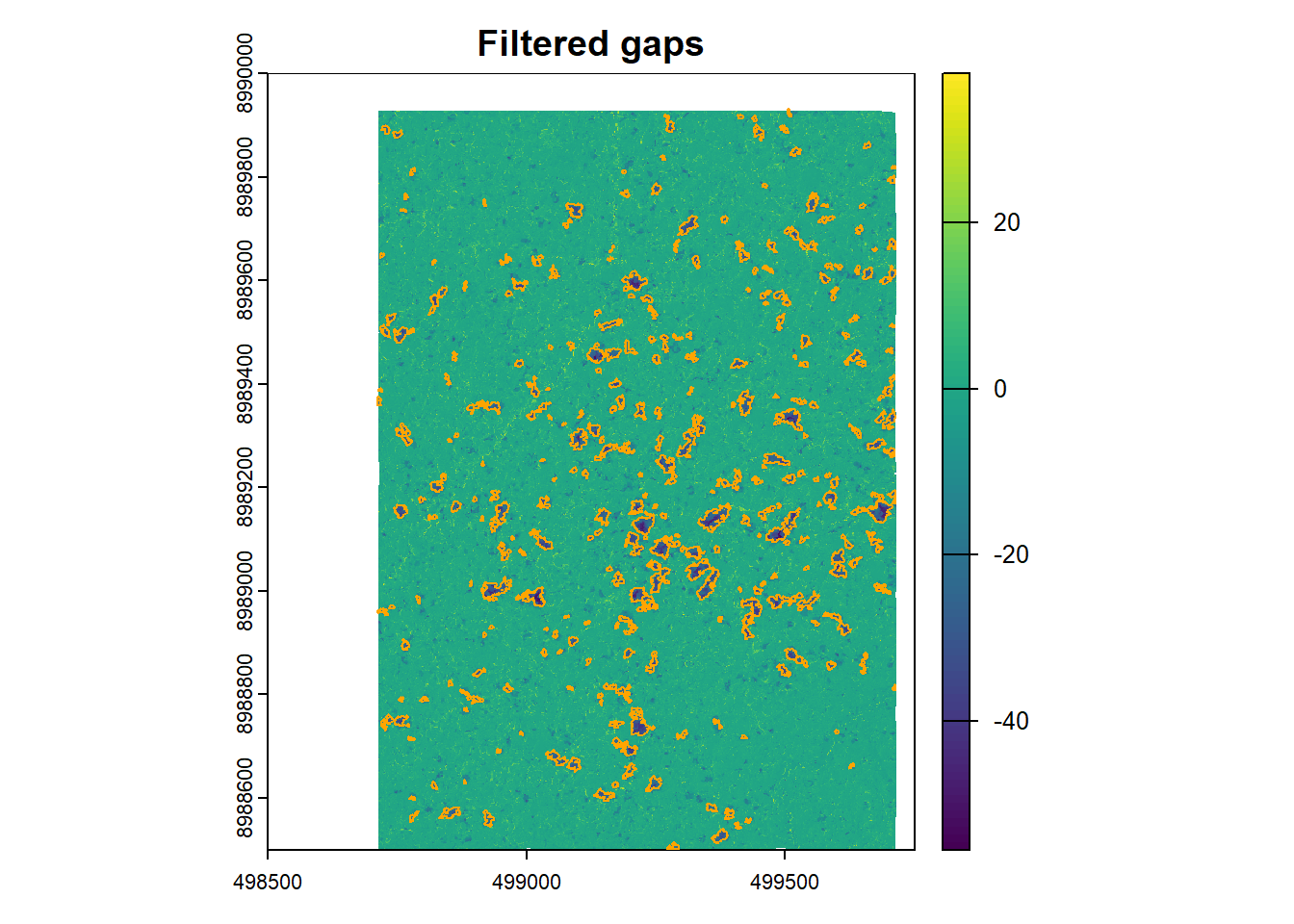

The filtered gaps (area > 25 m2).

Code
plot(diff_raster,
     main = "Filtered gaps")
plot(poly_filtrado,
      add = T,
      border = "orange")

6.9 Forest Inventory

Load the Commercial Forest Inventory, subset it to the pilot APU, and filter it to include only the harvested trees. Then convert it to a spatial vector, project it to the defined CRS and clip it using raster the extent.

Code
if100_romaneio <- read.csv(if100_pesquisa)

if100_upa <- subset(if100_romaneio,
                    codigo == paste0("Jamari_",
                                     "UMF_",
                                     umf,
                                     "_UPA_",
                                     upa.piloto))

if100_upa <- if100_upa[!is.na(if100_upa$vol_tora), ]

if100_upa$id_arv <- paste0(if100_upa$codigo,
                              "_arv_",
                              if100_upa$num_arvore)

if100_pts <- vect(if100_upa,
                  geom = c("Longitude",
                           "Latitude"),
                  keepgeom = TRUE,
                  crs = "EPSG:4674")

crs(if100_pts) <- "EPSG:4674"

if100_pts <- project(if100_pts,
                     projection)

if100_pts <- crop(if100_pts,
                  diff_raster)

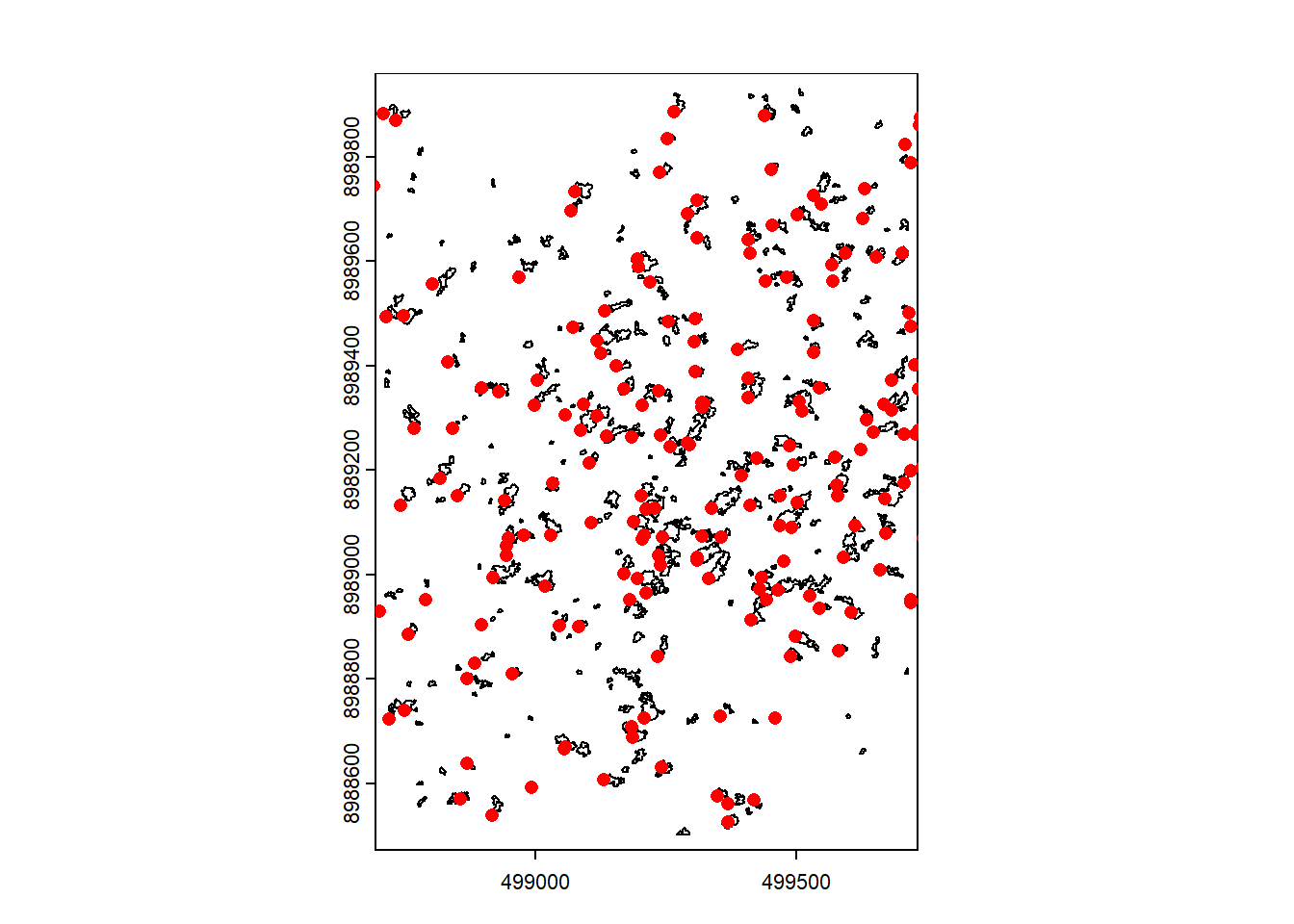

Plot the filtered gaps and the exploited trees.

Code
plot(poly_filtrado)
plot(if100_pts,
     add = T,
     col = "red")

Create an ID for each tree and generate a buffer around them using the buffer size defined earlier. The buffer is intended to prevent confusion between trees that are too close, which could lead to selecting the wrong crown.

Code
if100_pts$ID <- 1:nrow(if100_pts)

buffer_if100 <- buffer(if100_pts,
                       width = buffer_size)

plot(buffer_if100)

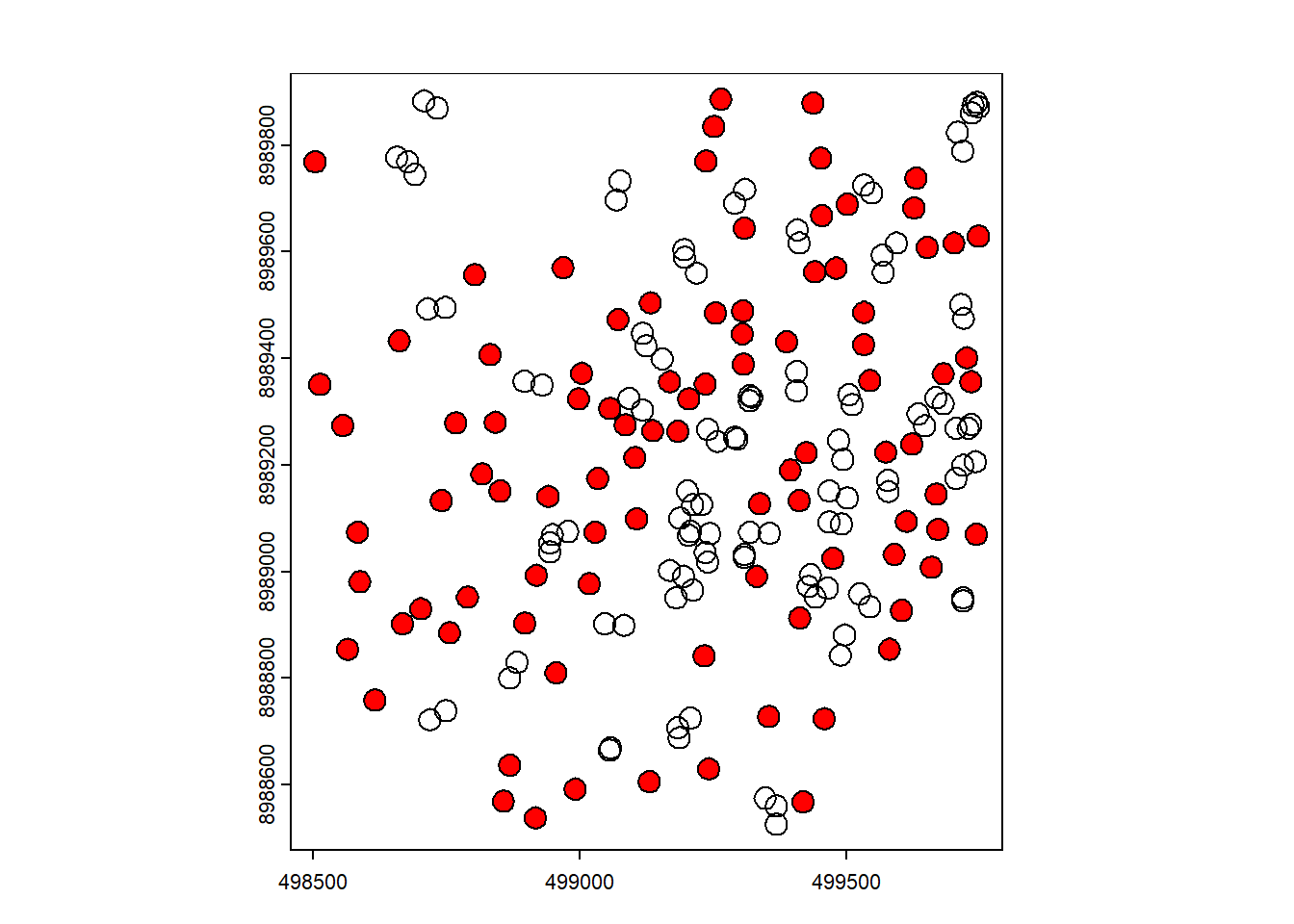

Remove the buffers that touch each other so that only isolated trees remain.

Code
toca <- relate(buffer_if100,
               buffer_if100,
               "overlaps")

diag(toca) <- FALSE

tocam_outros <- apply(toca, 1, any)

b_isolados <- buffer_if100[!tocam_outros]

plot(buffer_if100)
plot(b_isolados,
     add= T,
     col = "red")

Select the gaps that intersect with the tree buffers. Sometimes more than one gap intersects the same tree buffer, so we will select the gap whose boundary is closest to the tree.

Code
pts_sel <- if100_pts[ if100_pts$id_arv %in% b_isolados$id_arv , ]

sel <- relate(poly_filtrado,
              b_isolados,
              "intersects")

lista_copas <- apply(sel,
                     2,
                     function(x) which(x))

idx_mantidos <- c()

for (i in seq_along(lista_copas)) {

  copas_idx <- lista_copas[[i]]

  if (length(copas_idx) == 0) next

  if (length(copas_idx) == 1) {
    idx_mantidos <- c(idx_mantidos,
                      copas_idx)
    next
  }

  distancias <- distance(
    pts_sel[i, ],
    poly_filtrado[copas_idx, ]
  )


  idx_melhor <- copas_idx[ which.min(distancias) ]
  idx_mantidos <- c(idx_mantidos,
                    idx_melhor)
}


idx_mantidos <- unique(idx_mantidos)

pol_copas_sel <- poly_filtrado[idx_mantidos, ]

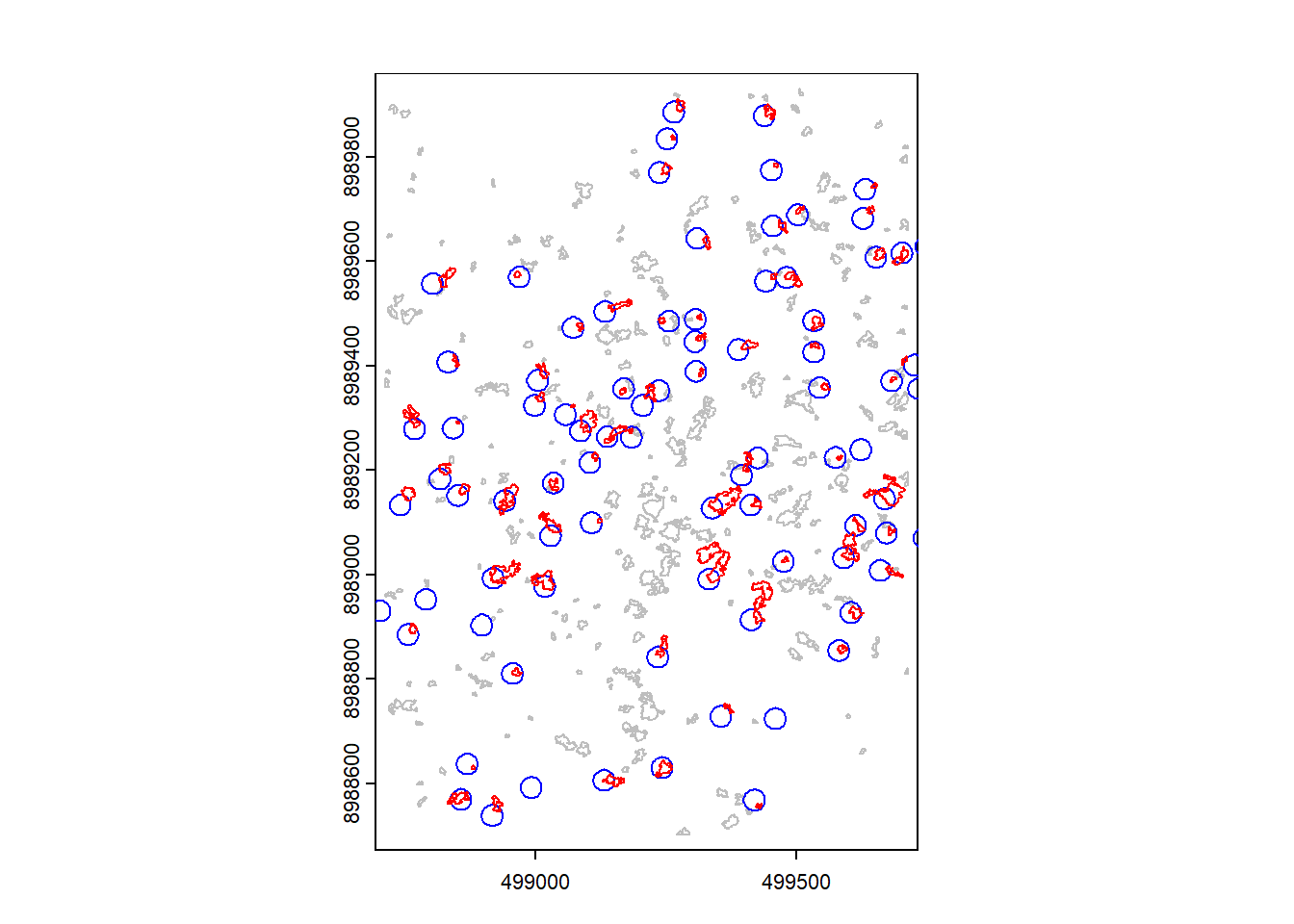

Visualize the results. Gray polygons are the gaps, blue polygons are the buffers and red are the gaps that intersects the buffers.

Code
plot(poly_filtrado,
     border = "gray")
plot(b_isolados,
     border = "blue",
     add = TRUE)
plot(pol_copas_sel,
     border = "red",
     add = TRUE)

Relate each gap to its intersecting crown so that every gap receives a tree ID.

Code
m <- relate(pol_copas_sel, b_isolados, "intersects")

idx <- apply(m, 1, function(x) ifelse(any(x), which(x)[1], NA))

pol_copas_sel$ID_B <- b_isolados$ID[idx]

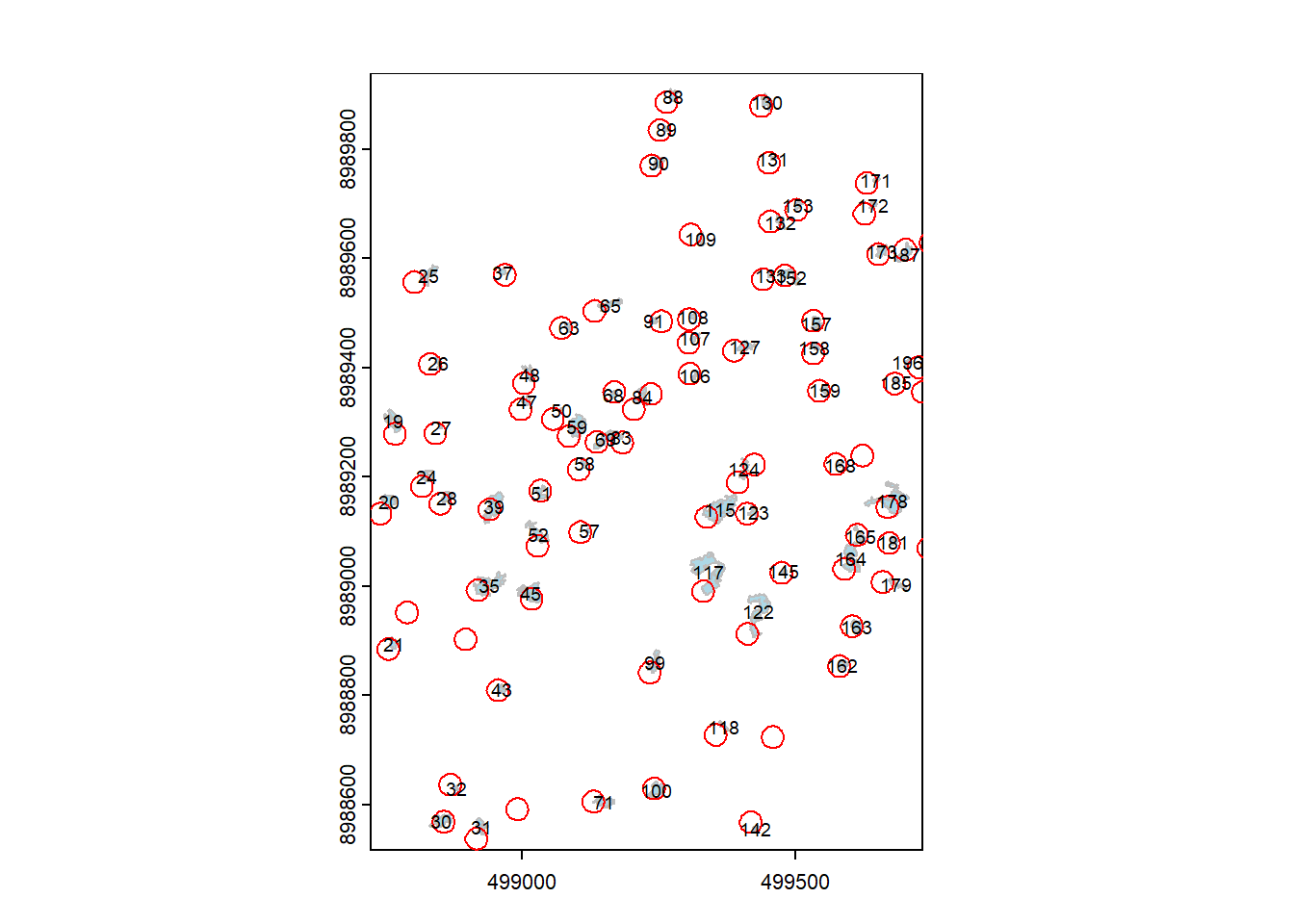

Visualize the results. Gaps are in blue, buffers in red. Each gap has an tree ID.

Code
plot(pol_copas_sel,
     col = "lightblue",
     border = "gray")
plot(b_isolados,
     border = "red",
     add = TRUE)
text(pol_copas_sel,
     "ID_B",
     cex = 0.6)

6.10 Extracting heights

Extract height values from the pre-harvest CHM using the delimited gaps. Use the maximum height based on the previously defined percentile to avoid outliers and points that do not represent the actual tree height (such as an emerging branch, for example).

Code
valores <- terra::extract(r1,
                          pol_copas_sel)

valores <- na.omit(valores)

colnames(valores) <- c("id_pol", "z")

stats <- valores %>%
  group_by(id_pol) %>%
  summarise(z_max = quantile(z,
                             percentil,
                             na.rm = TRUE))

pol_copas_sel$z_max <- stats$z_max

Add the tree height column to the Forest Inventory table.

Code
if100_pts_df <- as.data.frame(if100_pts)
pol_copas_sel_df <- as.data.frame(pol_copas_sel)

if100_pts_z <- left_join(if100_pts_df,
                         pol_copas_sel_df,
                         by = c("ID" = "ID_B"))

6.11 Results

Voilà. Final data frame has the tree total height obtained with Lidar.

Let`s write it down, and may the analysis begin.

Code
write.csv(if100_pts_z,
          file = paste0("output/tree_height/",
                        "UMF_",
                        umf,
                        "_UPA_",
                        upa.piloto,
                        "_if100_pts_z_PILOTO.csv"))

6.12 Graphics

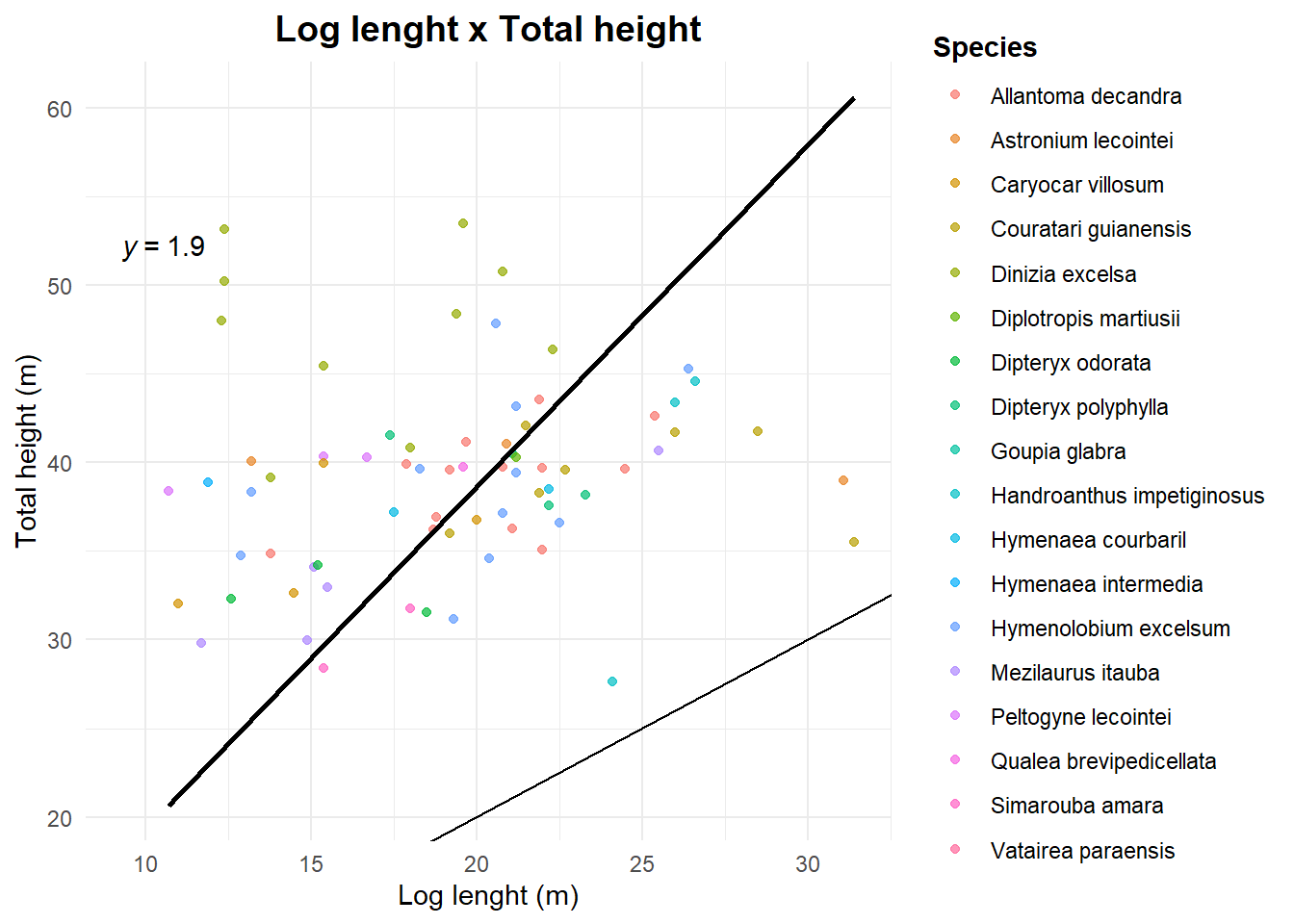

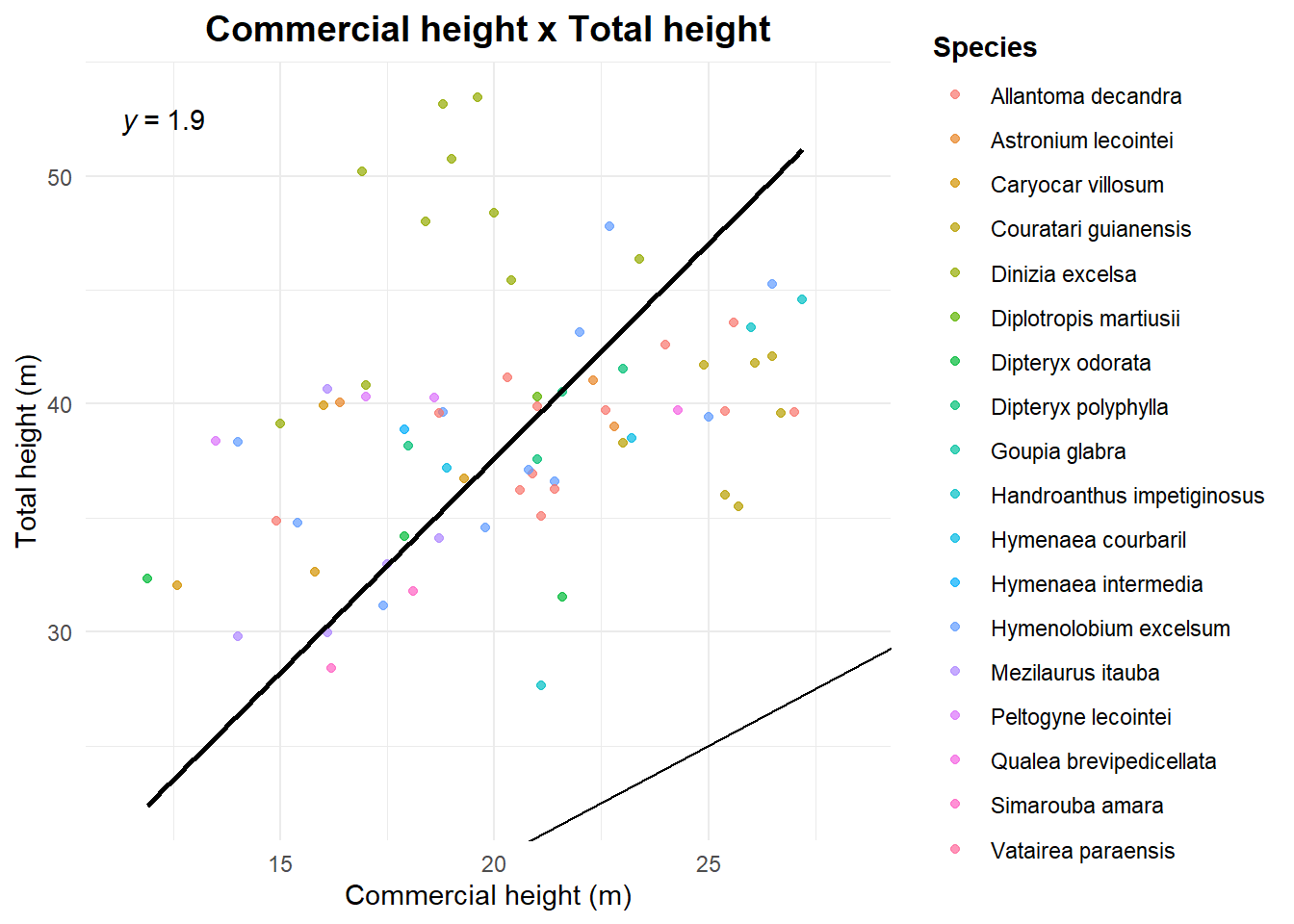

Some plots to see the relations between total height (obtained by Lidar) and commercial height (from the forest inventory) and log lenght (from the logbook)

Code
library(ggplot2)
ggplot(if100_pts_z,
       aes(x = comprim_tora,
           y = z_max)) +
  geom_point(alpha = 0.7,
             aes(color = nome_florabr)) +
  geom_smooth(method = "lm",
              se = FALSE,
              color = "black",
              formula = 'y ~ 0 + x') +
  theme_minimal() +
  labs(
    title = "Log lenght x Total height",
    x = "Log lenght (m)",
    y = "Total height (m)",
    color = "Species"
  ) +
  theme(
    plot.title = element_text(hjust = 0.5,
                              size = 14,
                              face = "bold"),
    legend.title = element_text(face = "bold")
  ) +
  geom_abline() +
  ggpubr::stat_regline_equation(formula = 'y ~ 0 + x')

Code
ggplot(if100_pts_z,
       aes(x = Altura,
           y = z_max)) +
  geom_point(alpha = 0.7,
             aes(color = nome_florabr)) +
  geom_smooth(method = "lm",
              se = FALSE,
              color = "black",
              formula = 'y ~ 0 + x') +
  theme_minimal() +
  labs(
    title = "Commercial height x Total height",
    x = "Commercial height (m)",
    y = "Total height (m)",
    color = "Species"
  ) +
  theme(
    plot.title = element_text(hjust = 0.5,
                              size = 14,
                              face = "bold"),
    legend.title = element_text(face = "bold")
  ) +
  geom_abline() +
  ggpubr::stat_regline_equation(formula = 'y ~ 0 + x')

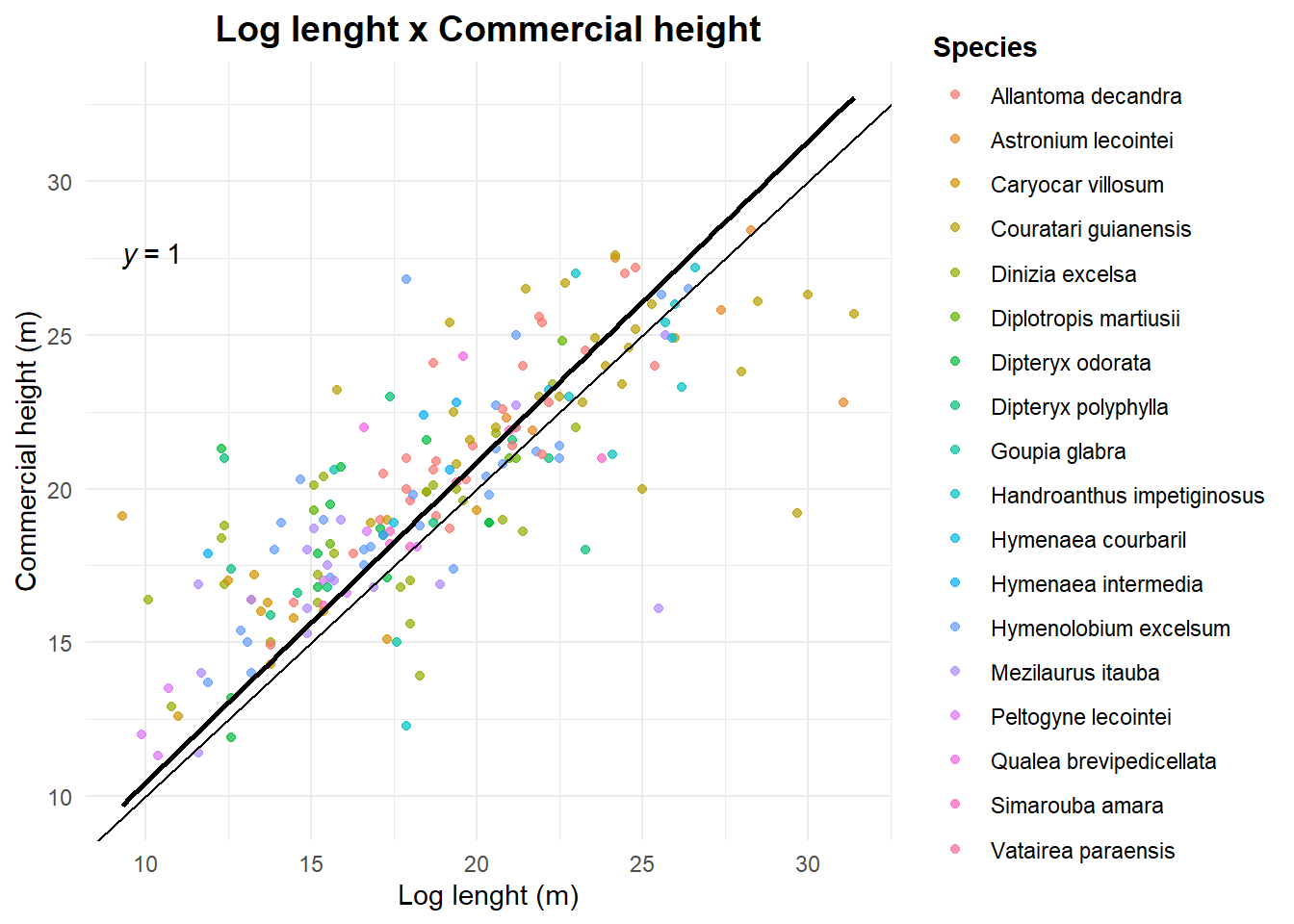

Code
ggplot(if100_pts_z,
       aes(x = comprim_tora,
           y = Altura)) +
  geom_point(alpha = 0.7,
             aes(color = nome_florabr)) +
  geom_smooth(method = "lm",
              se = FALSE,
              color = "black",
              formula = 'y ~ 0 + x') +
  theme_minimal() +
  labs(
    title = "Log lenght x Commercial height",
    x = "Log lenght (m)",
    y = "Commercial height (m)",
    color = "Species"
  ) +
  theme(
    plot.title = element_text(hjust = 0.5,
                              size = 14,
                              face = "bold"),
    legend.title = element_text(face = "bold")
  ) +
  geom_abline() +
  ggpubr::stat_regline_equation(formula = 'y ~ 0 + x')
